H3DDS-3436M

Active

Assmann WSW Components

IDC CBL - HHKR34S/AE34M/HHKR34S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR34S/AE34M/HHKR34S

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDS-3436M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Tin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Connector Type	Features	Cable Termination	Contact Finish	Length [x]	Length [x]	Number of Positions	Color	Shielding	Pitch - Cable	Pitch - Cable	Number of Rows	Pitch - Connector	Pitch - Connector	Length	Length	Length
Assmann WSW Components H3DDS-3436M	Socket to Socket	Polarizing Key Strain Relief	IDC	Tin	3 ft	914.4 mm	34	Multiple Ribbon	Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm
Assmann WSW Components H3DDS-3406M	Socket to Socket	Polarizing Key Strain Relief	IDC	Tin			34	Multiple Ribbon	Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
Assmann WSW Components H3DDS-3418G	Socket to Socket	Polarizing Key Strain Relief	IDC	Tin	1.5 ft	457.2 mm	34		Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

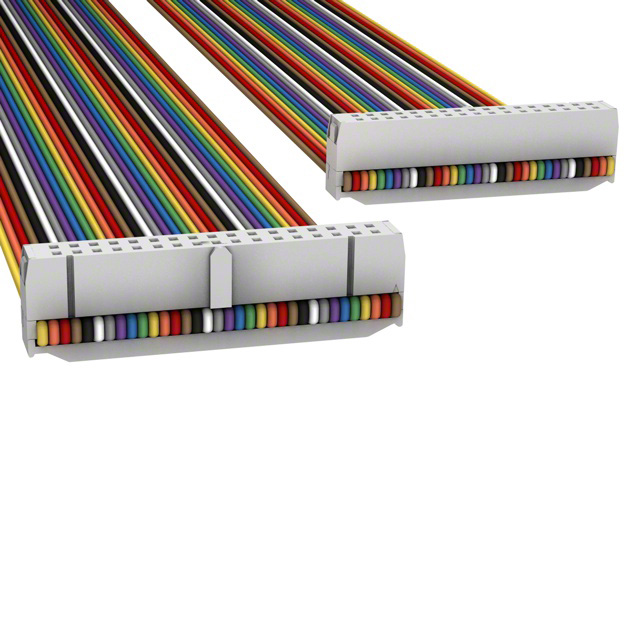

34 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
