ERA.4S.312.CLL

Active

LEMO

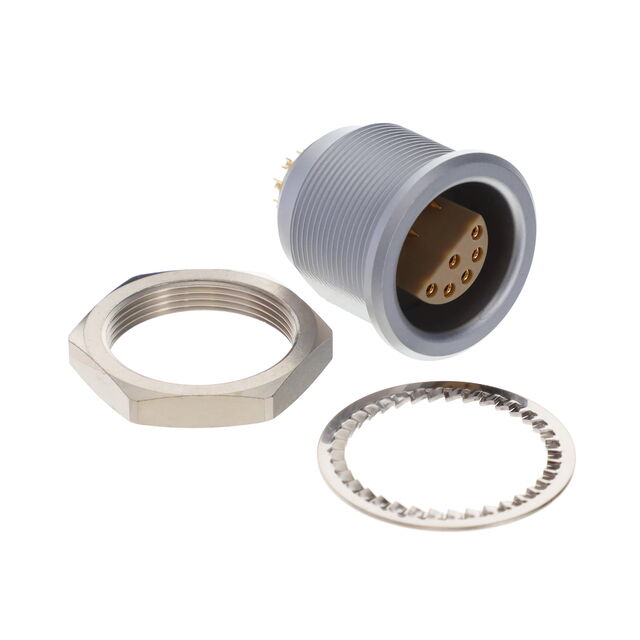

RECEPTACLE 20POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

ERA.4S.312.CLL

Active

LEMO

RECEPTACLE 20POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 126.54
		10	$ 116.12
		25	$ 111.66
		50	$ 107.93

Description

General part information

ERA.4S Series

12 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.4S.312.CLL	ERA.4S Series

	-	-
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	165, RG-11A, 214, 225, 144, 216, 213, 115A
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	9 A	9 - 46 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	12	1 - 12
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A, Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	312	140 - 312
Shield Termination	-	Solder
Shielding	Shielded	Shielded

ERA.4S Series

RETAINING RING FOR ERA.4S.

Part	Mounting Feature	Shell Finish	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Insert Material	Fastening Type	Ingress Protection	Contact Material	Orientation	Connector Type	Shell Material	Primary Material	Color	Shell Size - Insert	Contact Finish - Mating	Center Contact Material	Mating Cycles	Center Contact Plating	Impedance	Includes	Number of Ports	Dielectric Material	Body Material	Body Finish	Shield Termination	Connector Style	Housing Color	Cable Group	Contact Termination
LEMO ERA.4S.230.LN
LEMO ERA.4S.312.CLL	Bulkhead - Rear Side Nut	Chrome	Shielded	-55 °C	250 °C	UL94 V-0	9 A	12	Polyetheretherketone (PEEK)	Push-Pull	IP50	Brass, Bronze	A	Female Sockets, Male Pins, Receptacle	Brass	Metal	Silver	312	Gold
LEMO ERA.4S.302.CLL	Bulkhead - Rear Side Nut	Chrome	Shielded	-55 °C	250 °C	UL94 V-0	35 A	2	Polyetheretherketone (PEEK)	Push-Pull	IP50	Brass, Bronze	Keyed	Female Sockets, Male Pins, Receptacle	Brass	Metal	Silver	302	Gold
LEMO ERA.4S.308.CLL	Bulkhead - Rear Side Nut	Chrome	Shielded	-55 °C	250 °C	UL94 V-0	13 A	8	Polyetheretherketone (PEEK)	Push-Pull	IP50	Brass, Bronze	Keyed	Female Sockets, Male Pins, Receptacle	Brass	Metal	Silver	308	Gold
LEMO ERA.4S.310.CLL	Bulkhead - Rear Side Nut	Chrome	Shielded	-55 °C	250 °C	UL94 V-0	11 A	10	Polyetheretherketone (PEEK)	Push-Pull	IP50	Brass, Bronze	Keyed	Female Sockets, Male Pins, Receptacle	Brass	Metal	Silver	310	Gold
LEMO ERA.4S.250.CTL	Bulkhead - Rear Side Nut			-55 °C	250 °C					Push-Pull	IP50			Female Socket, Receptacle						Beryllium Copper	1000	Gold	50 Ohms	1 Connector, 1 Lockwasher, 1 Nut	1	Polytetrafluoroethylene (PTFE)	Brass	Chrome	Solder	Coaxial	Silver	115A, 144, 165, 213, 214, 216, 225, RG-11A	Solder Cup
LEMO ERA.4S.305.CLL	Bulkhead - Rear Side Nut	Chrome	Shielded	-55 °C	250 °C	UL94 V-0			Polyetheretherketone (PEEK)	Push-Pull	IP50	Brass, Bronze	Keyed	Female Sockets, Male Pins, Receptacle	Brass	Metal	Silver	305	Gold
LEMO ERA.4S.309.CLL	Bulkhead - Rear Side Nut	Chrome	Shielded	-55 °C	250 °C	UL94 V-0	12 A	9	Polyetheretherketone (PEEK)	Push-Pull	IP50	Brass, Bronze	Keyed	Female Sockets, Male Pins, Receptacle	Brass	Metal	Silver	309	Gold
LEMO ERA.4S.140.CTL	Bulkhead - Rear Side Nut	Chrome	Shielded	-55 °C	250 °C		46 A	1	Polytetrafluoroethylene (PTFE)	Push-Pull	IP50	Bronze	Keyed	Receptacle, Female Sockets	Brass	Metal	Silver	140	Gold
