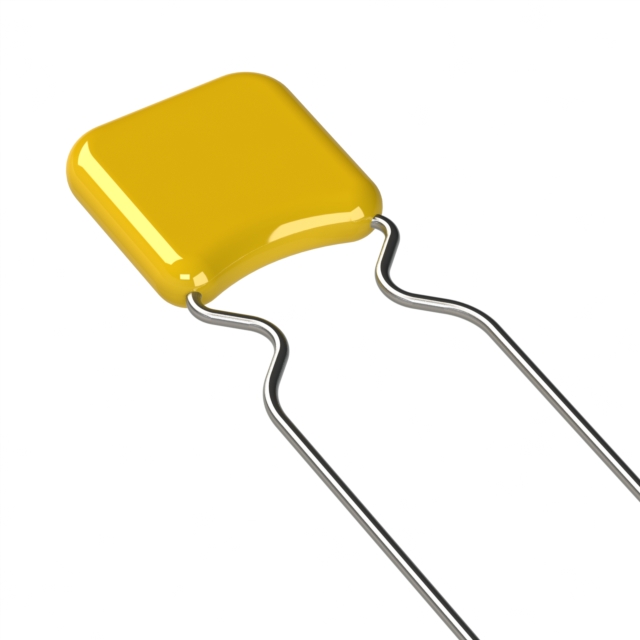

AR211C102K4R

Active

Kyocera AVX

CAP CER 1000PF 100V X7R RADIAL

Search across all available documentation for this part.

Active

Kyocera AVX

CAP CER 1000PF 100V X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Lead Style	Applications	Capacitance	Lead Spacing	Lead Spacing	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ratings	Package / Case	Mounting Type
Kyocera AVX AR211C472K4RTR2	Formed Leads - Kinked	Automotive	4700 pF	5.08 mm	0.2 in	X7R	0.2 in	0.125 in	5.08 mm	3.18 mm	5.08 mm	0.2 "	100 V	-55 °C	125 °C	10 %	AEC-Q200	Radial	Through Hole
Kyocera AVX AR211C104K4RTR2	Formed Leads - Kinked	Automotive	100000 pF	5.08 mm	0.2 in	X7R	0.2 in	0.125 in	5.08 mm	3.18 mm	5.08 mm	0.2 "	100 V	-55 °C	125 °C	10 %	AEC-Q200	Radial	Through Hole
Kyocera AVX AR211C471K4R	Formed Leads - Kinked	Automotive	470 pF	5.08 mm	0.2 in	X7R	0.2 in	0.125 in	5.08 mm	3.18 mm	5.08 mm	0.2 "	100 V	-55 °C	125 °C	10 %	AEC-Q200	Radial	Through Hole
Kyocera AVX AR211C102K4R	Formed Leads - Kinked	Automotive	0.001 µF	5.08 mm	0.2 in	X7R	0.2 in	0.125 in	5.08 mm	3.18 mm	5.08 mm	0.2 "	100 V	-55 °C	125 °C	10 %	AEC-Q200	Radial	Through Hole
Kyocera AVX AR211C102K4RTR1	Formed Leads - Kinked	Automotive	0.001 µF	5.08 mm	0.2 in	X7R	0.2 in	0.125 in	5.08 mm	3.18 mm	5.08 mm	0.2 "	100 V	-55 °C	125 °C	10 %	AEC-Q200	Radial	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 pF ±10% 100V Ceramic Capacitor X7R Radial
