EC9926-000

Active

TE Connectivity Raychem Cable Protection

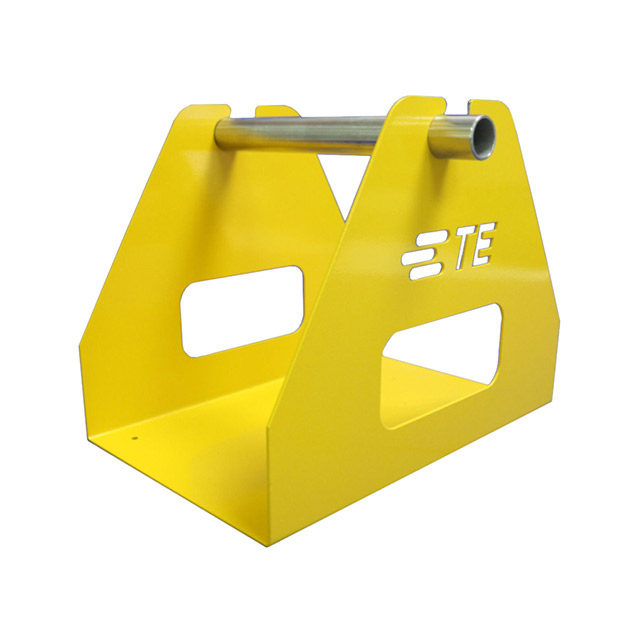

PRINTER-UNIVERSAL-PAYOFF

Deep-Dive with AI

Search across all available documentation for this part.

EC9926-000

Active

TE Connectivity Raychem Cable Protection

PRINTER-UNIVERSAL-PAYOFF

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC9926-000

Accessory Type	Reel Holder
For Use With/Related Products	Reels

EC99 Series

Part	Color	Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Legend	Size [x]	Size [x]	Cable Diameter [diameter]	For Use With/Related Products	Accessory Type
TE Connectivity Raychem Cable Protection EC9958-000	Yellow	Wire Marker Push On	0.06 in 0.08 in	1.52 mm 2.03 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	G
TE Connectivity Raychem Cable Protection EC9982-000	Yellow	Wire Marker Push On	0.06 in 0.08 in	1.52 mm 2.03 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)
TE Connectivity Raychem Cable Protection EC9954-000	Yellow	Wire Marker Clip-On	0.059 in 0.079 in	1.5 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)		0.18 in	4.5 mm	2 mm
TE Connectivity Raychem Cable Protection EC9960-000	Yellow	Wire Marker Push On	0.06 in 0.08 in	1.52 mm 2.03 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	H
TE Connectivity Raychem Cable Protection EC9969-000	Yellow	Wire Marker Push On	0.06 in 0.08 in	1.52 mm 2.03 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	O
TE Connectivity Raychem Cable Protection EC9963-000	Yellow	Wire Marker Push On	0.06 in 0.08 in	1.52 mm 2.03 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	J
TE Connectivity Raychem Cable Protection EC9967-000	Yellow	Wire Marker Push On	0.06 in 0.08 in	1.52 mm 2.03 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	M
TE Connectivity Raychem Cable Protection EC9981-000	Yellow	Wire Marker Push On	0.06 in 0.08 in	1.52 mm 2.03 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	/
TE Connectivity Raychem Cable Protection EC9926-000												Reels	Reel Holder
TE Connectivity Raychem Cable Protection EC9951-000	Yellow	Wire Marker Clip-On	0.059 in 0.079 in	1.5 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	C	0.18 in	4.5 mm	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 282.72
		10	$ 251.23
		25	$ 244.75

Description

General part information

EC99 Series

PRINTER-UNIVERSAL-PAYOFF

Documents

Technical documentation and resources

No documents available
