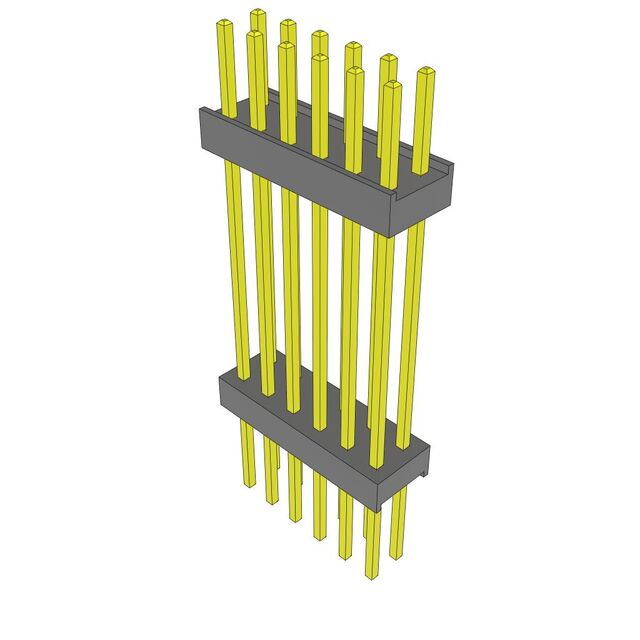

ZW-06-14-G-D-900-320

Active

Samtec Inc.

STRAIGHT GOLD 12P 2.54MM DOUBLE ROW BLACK 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch ZW Datasheet +2

ZW-06-14-G-D-900-320

Active

Samtec Inc.

STRAIGHT GOLD 12P 2.54MM DOUBLE ROW BLACK 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch ZW Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZW-06-14-G-D-900-320

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.43 in
Length - Overall Pin [x]	36.322 mm
Length - Post (Mating) [x]	5.334 mm
Length - Post (Mating) [x]	0.21 in
Length - Stack Height [x]	22.86 mm
Length - Stack Height [x]	0.9 in
Length - Tail	8.128 mm
Length - Tail	0.32 in
Mounting Type	Through Hole
Number of Positions	12
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

ZW-13-13 Series

Board to Board & Mezzanine Connectors Flexible Board Stacking Header, 0.100" Pitch

...

Part	Mounting Type	Termination	Color	Row Spacing [x]	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail	Number of Rows	Contact Finish - Post (Mating)	Length - Tail [x]	Length - Tail [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [custom]	Number of Positions	Length - Overall Pin	Length - Tail
Samtec Inc. ZW-13-13-G-D-435-395	Through Hole	Solder	Black	0.1 in	2.54 mm	0.25 Ám	10 Áin	26	31.242 mm	1.23 in	10.16 mm	0.4 in	2.54 mm	0.1 in	10.033 mm	0.395 in	2	Gold
Samtec Inc. ZW-04-20-T-D-680-225-006	Through Hole	Solder	Black	0.1 in	2.54 mm			8	28.702 mm	1.13 in	5.715 mm	0.225 in	2.54 mm	0.1 in			2	Tin	5.715 mm	0.225 in	0.68 in	17.272 mm
Samtec Inc. ZW-08-12-L-S-629-165	Through Hole	Solder	Black			0.25 Ám	10 Áin	8	26.162 mm	1.03 in	5.994 mm	0.236 in	2.54 mm	0.1 in		4.191 mm	1	Gold			0.629 in	15.977 mm	0.165 "
Samtec Inc. ZW-08-12-G-D-660-215	Through Hole	Solder	Black	0.1 in	2.54 mm	0.25 Ám	10 Áin		26.162 mm	1.03 in	3.937 mm	0.155 in	2.54 mm	0.1 in			2	Gold			0.66 in	16.764 mm		16
Samtec Inc. ZW-07-10-T-S-420-250	Through Hole	Solder	Black					7		0.83 in	4.064 mm	0.16 in	2.54 mm	0.1 in			1	Tin	6.35 mm	0.25 in	0.42 in	10.668 mm			21.082 mm
Samtec Inc. ZW-07-15-S-S-240-138	Through Hole	Solder	Black			0.76 µm	30 µin	7	16.002 mm	0.63 in	6.4 mm	0.252 in	2.54 mm	0.1 in		3.5 mm	1	Gold			0.24 in	6.096 mm				0.138 in
Samtec Inc. ZW-05-13-T-D-1000-100	Through Hole	Solder	Black	0.1 in	2.54 mm			10	31.242 mm	1.23 in	3.302 mm	0.13 in	2.54 mm	0.1 in			2	Tin	2.54 mm	0.1 "	1 in	25.4 mm
Samtec Inc. ZW-15-10-G-D-460-250	Through Hole	Solder	Black	0.1 in	2.54 mm	0.25 Ám	10 Áin	30		0.83 in	3.048 mm	0.12 in	2.54 mm	0.1 in			2	Gold	6.35 mm	0.25 in	0.46 in	11.684 mm			21.082 mm
Samtec Inc. ZW-08-12-T-D-688-091	Through Hole	Solder	Black	0.1 in	2.54 mm				26.162 mm	1.03 in	6.375 mm	0.251 in	2.54 mm	0.1 in			2	Tin	2.311 mm	0.091 in	0.688 in	17.475 mm		16
Samtec Inc. ZW-06-14-G-D-900-320	Through Hole	Solder	Black	0.1 in	2.54 mm	0.25 Ám	10 Áin	12	36.322 mm	1.43 in	5.334 mm	0.21 in	2.54 mm	0.1 in		8.128 mm	2	Gold			0.9 in	22.86 mm				0.32 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.56
LCSC	Piece	1	$ 7.10
		200	$ 2.83
		500	$ 2.74
		1000	$ 2.69

Description

General part information

ZW-13-13 Series

Board to Board & Mezzanine Connectors Flexible Board Stacking Header, 0.100" Pitch

Documents

Technical documentation and resources

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

ZW Datasheet

Datasheet

XW Print

Datasheet
