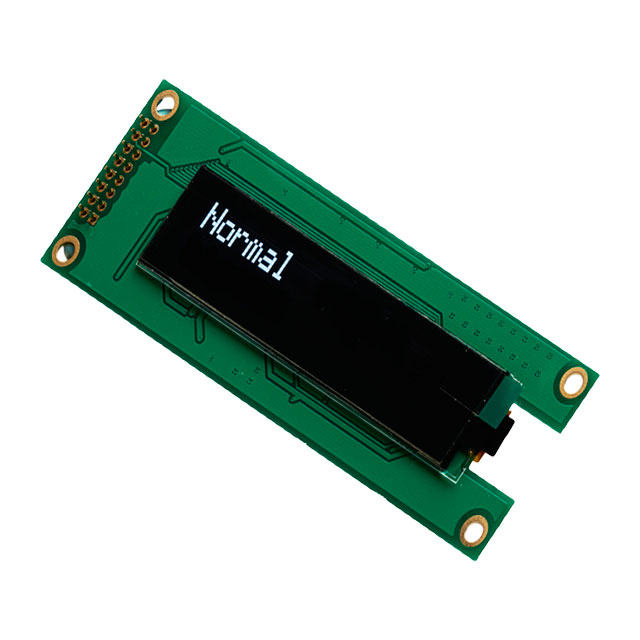

LOD-H02002DP-W

Active

Lumex Opto/Components Inc.

OLED MODULE 40DIG 20 X 2 PASSIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OLED MODULE 40DIG 20 X 2 PASSIVE

Technical Specifications

Parameters and characteristics for this part

OLED MODULE 40DIG 20 X 2 PASSIVE

Part	Number of Characters	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [y]	Character Size [x]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Display Mode	Text Color	Character Format [y]	Character Format [x]	Viewing Area [y]	Viewing Area [x]	Operating Temperature [Min]	Operating Temperature [Max]	Background Color	Dot Size [y]	Dot Size [x]	Display Format [x]	Display Format [y]	Interface
Lumex Opto/Components Inc. LOD-H02002DP-W	40	OLED	2.4 V	5.5 V	5.57 mm	3.22 mm	37 mm	3.8 mm	116 mm	Passive	White	8 Dots	5 Dots	13.52 mm	75.52 mm	-40 °C	80 C	Black	0.67 mm	0.62 mm	20	2	Parallel, 8-Bit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit 116.00mm x 37.00mm x 3.80mm
