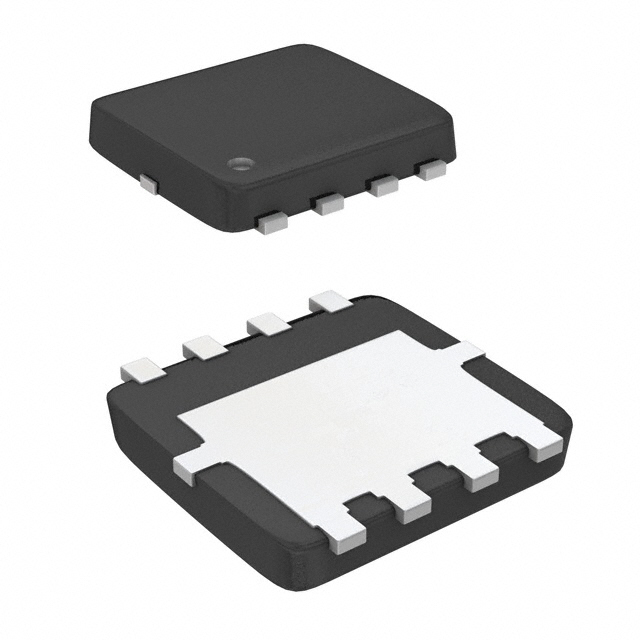

AON7412

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 30V 10A/16A 8DFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 30V 10A/16A 8DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AON7412

Current - Continuous Drain (Id) @ 25°C	10 A, 16 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	4 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	10 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	466 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power Dissipation (Max)	3.1 W, 20.8 W
Rds On (Max) @ Id, Vgs	20 mOhm
Supplier Device Package	8-DFN-EP (3x3)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	25 V
Vgs(th) (Max) @ Id	2 V

Part	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Technology	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Drain to Source Voltage (Vdss)	Mounting Type	Package / Case	Vgs (Max)	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]
Alpha & Omega Semiconductor Inc. AON7412	2 V	3.1 W 20.8 W	10 A 16 A	20 mOhm	MOSFET (Metal Oxide)	-55 °C	150 °C	N-Channel	30 V	Surface Mount	8-PowerVDFN	25 V	8-DFN-EP (3x3)	466 pF	4 V	10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 30 V 10A (Ta), 16A (Tc) 3.1W (Ta), 20.8W (Tc) Surface Mount 8-DFN-EP (3x3)
