827050-1

Unknown

TE Connectivity AMP Connectors

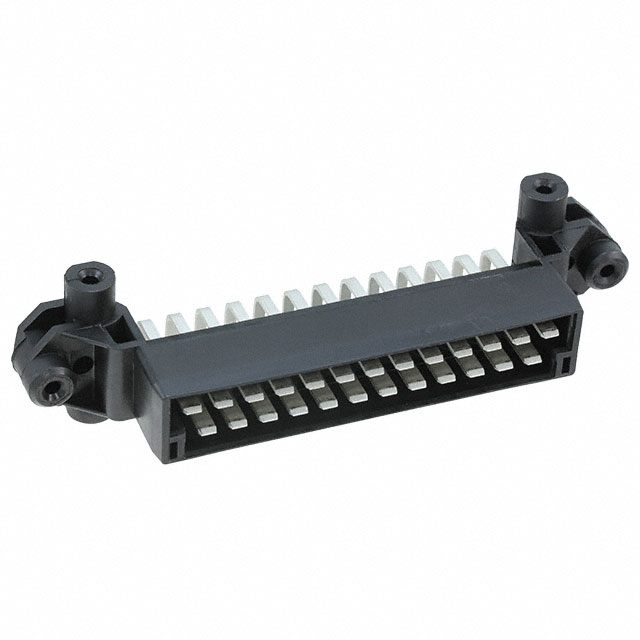

CONN HEADER R/A 25POS 5MM

Search across all available documentation for this part.

Unknown

TE Connectivity AMP Connectors

CONN HEADER R/A 25POS 5MM

Technical Specifications

Parameters and characteristics for this part

Specification	827050-1

Applications	Automotive, General Purpose
Connector Type	Plug
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Push-Pull
Features	Mating Flange, Mounting Flange
Insulation Color	Black
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 25POS 5MM

Part	Applications	Termination	Mounting Type	Insulation Color	Contact Length - Post	Contact Length - Post	Features	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Connector Type	Number of Rows	Pitch - Mating	Pitch - Mating	Shrouding	Contact Type	Style	Fastening Type
TE Connectivity AMP Connectors 827050-1	Automotive, General Purpose	Solder	Through Hole, Right Angle	Black	3.5 mm	0.138 in	Mating Flange, Mounting Flange	Rectangular	5 mm	0.197 in	All	Plug	2	5 mm	0.197 "	Shrouded - 4 Wall	Tab	Board to Board, Cable	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 25 position 0.197" (5.00mm)
