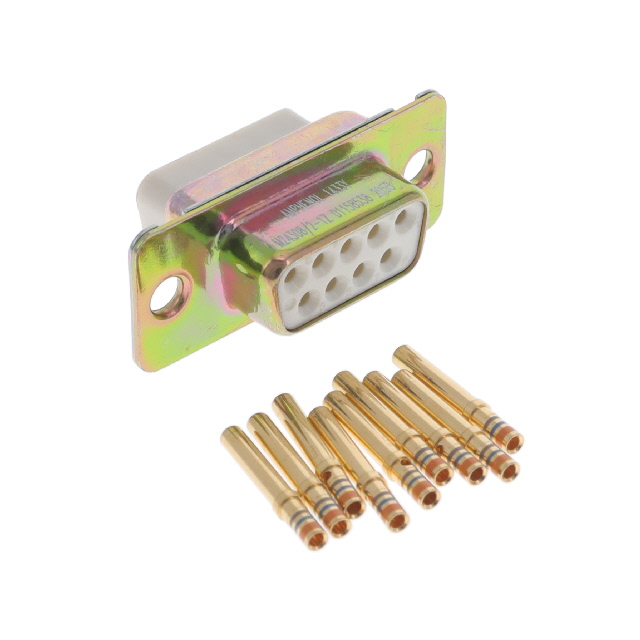

M24308/2-1Z
ActiveAmphenol Positronic
CONN D-SUB RCPT 9P PNL MNT CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/2-1Z
ActiveAmphenol Positronic
CONN D-SUB RCPT 9P PNL MNT CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M24308/2-1Z | M24308/2 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Style | D-Sub | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle for Female Contacts |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 7.5 A | 5 - 7.5 A |
| Dielectric Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 500 |
| Note | - | Contacts Not Included |
| Number of Positions | 9 | 9 - 78 |
| Number of Rows | 2 | 2 - 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc | Steel, Yellow Chromate Plated Zinc, Yellow Cadmium Plated, Nickel Plated |
| Shell Size, Connector Layout | - | 2 - 5 |
| Shell Size, Connector Layout | - | 3 |
| Shell Size, Connector Layout | - | B, DB, DE, E |
| Shell Size, Connector Layout | - | 1 |
| Shell Size, Connector Layout | - | High Density |
| Shell Size, Connector Layout | - | (DA, A) High Density |
| Shell Size, Connector Layout [custom] | DE, E | DE, E |
| Shell Size, Connector Layout [custom] | 1 | 1 |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 26 AWG | 26 - 28 AWG |
| Wire Gauge [Min] | 20 AWG | 20 - 22 AWG |
M24308/2 Series
DSUB CONN,CRIMP, SOCKET, ZINC
| Part | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Contact Material | Contact Finish | Shell Size, Connector Layout | Connector Style | Number of Rows | Connector Type | Contact Type | Shell Material, Finish | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge [Min] | Wire Gauge [Max] | Color | Dielectric Material | Flange Feature | Termination | Note | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Mating Cycles | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Positronic M24308/2-2Z | UL94 V-0 | 7.5 A | 15 | Copper Alloy | Gold | 2 | D-Sub | 2 | Receptacle, Female Sockets | Signal | Steel, Yellow Chromate Plated Zinc | -55 °C | 125 °C | 20 AWG | 26 AWG | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Crimp | |||||||||
Amphenol Positronic M24308/2-489F | 44 | D-Sub, High Density | 3 | Receptacle for Female Contacts | Signal | Steel, Yellow Cadmium Plated | -55 °C | 125 °C | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Contacts Not Included | 3 | B, DB | 500 | |||||||||||||
Amphenol Positronic M24308/2-11Z | UL94 V-0 | 5 A | 15 | Copper Alloy | Gold | D-Sub, High Density | 3 | Receptacle, Female Sockets | Signal | Steel, Yellow Chromate Plated Zinc | -55 °C | 125 °C | 22 AWG | 28 AWG | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Crimp | DE, E | 1 | High Density | |||||||
Amphenol Positronic M24308/2-290F | 78 | D-Sub, High Density | Receptacle for Female Contacts | Signal | Steel, Yellow Cadmium Plated | -55 °C | 125 °C | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Contacts Not Included | 500 | ||||||||||||||||
Amphenol Positronic M24308/2-5Z | UL94 V-0 | 7.5 A | 50 | Copper Alloy | Gold | 5 | D-Sub | 3 | Receptacle, Female Sockets | Signal | Steel, Yellow Chromate Plated Zinc | -55 °C | 125 °C | 20 AWG | 26 AWG | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Crimp | |||||||||
Amphenol Positronic M24308/2-12F | UL94 V-0 | 5 A | 26 | Copper Alloy | Gold | 2 | D-Sub, High Density | 3 | Receptacle, Female Sockets | Signal | Steel, Yellow Cadmium Plated | -55 °C | 125 °C | 22 AWG | 28 AWG | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Crimp | (DA, A) High Density | ||||||||
Amphenol Positronic M24308/2-5F | UL94 V-0 | 7.5 A | 50 | Copper Alloy | Gold | 5 | D-Sub | 3 | Receptacle, Female Sockets | Signal | Steel, Yellow Cadmium Plated | -55 °C | 125 °C | 20 AWG | 26 AWG | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Crimp | |||||||||
Amphenol Positronic M24308/2-1Z | UL94 V-0 | 7.5 A | 9 | Copper Alloy | Gold | D-Sub | 2 | Receptacle, Female Sockets | Signal | Steel, Yellow Chromate Plated Zinc | -55 °C | 125 °C | 20 AWG | 26 AWG | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Crimp | DE, E | 1 | ||||||||
Amphenol Positronic M24308/2-517 | UL94 V-0 | 7.5 A | 15 | Copper Alloy | Gold | 2 | D-Sub | 2 | Receptacle, Female Sockets | Signal | Nickel Plated, Steel | -55 °C | 125 °C | 20 AWG | 26 AWG | Natural | Polyester, Glass Filled | Housing/Shell (Unthreaded) | Crimp | |||||||||
Amphenol Positronic M24308/2-285Z | 50 | 5 | D-Sub | 3 | Receptacle for Female Contacts | Signal | Steel, Yellow Chromate Plated Zinc | -55 °C | 125 °C | Housing/Shell (Unthreaded) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.73 | |
| 10 | $ 19.07 | |||
| 25 | $ 17.26 | |||
| 50 | $ 16.05 | |||
| 100 | $ 14.94 | |||
| 250 | $ 13.64 | |||
| 500 | $ 12.77 | |||
| Tray | 1 | $ 17.31 | ||
| 10 | $ 14.71 | |||
| 25 | $ 13.79 | |||
| 50 | $ 13.13 | |||
| 100 | $ 12.50 | |||
| 250 | $ 11.72 | |||
| 500 | $ 11.16 | |||
Description
General part information
M24308/2 Series
9 Position D-Sub Receptacle, Female Sockets Connector
