M24308/2-11Z

Active

Amphenol Positronic

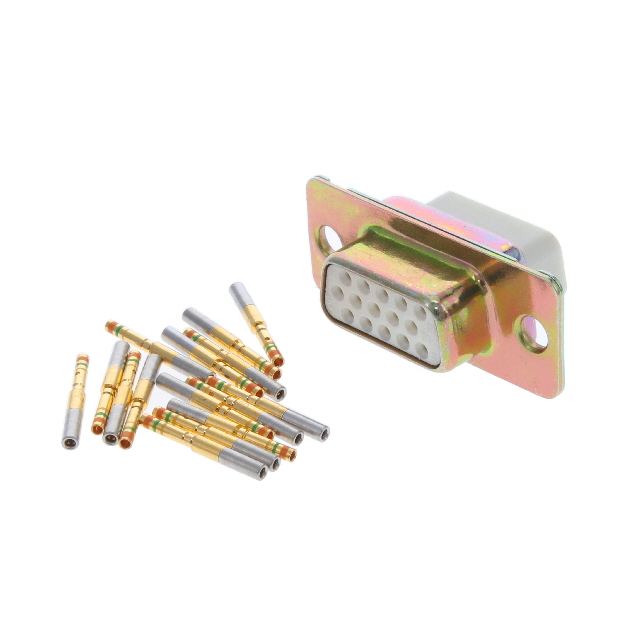

DSUB CONN,CRIMP, SOCKET, ZINC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/2-11Z

Active

Amphenol Positronic

DSUB CONN,CRIMP, SOCKET, ZINC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.93
		10	$ 18.14
		25	$ 17.20
		40	$ 16.95
		80	$ 14.95
		230	$ 13.96
		440	$ 13.66

Description

General part information

M24308/2 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M24308/2-11Z	M24308/2 Series

Color	Natural	Natural
Connector Style	High Density, D-Sub	D-Sub, High Density
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle for Female Contacts
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 - 7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	500
Note	-	Contacts Not Included
Number of Positions	15	9 - 78
Number of Rows	3	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc	Steel, Yellow Chromate Plated Zinc, Yellow Cadmium Plated, Nickel Plated
Shell Size, Connector Layout	-	2 - 5
Shell Size, Connector Layout	-	3
Shell Size, Connector Layout	-	(DA, A) High Density
Shell Size, Connector Layout	-	DE, E
Shell Size, Connector Layout	-	1
Shell Size, Connector Layout [custom]	DE, E	B, DB, DE, E
Shell Size, Connector Layout [custom]	1	1
Shell Size, Connector Layout [custom]	High Density	High Density
Termination	Crimp	Crimp
Wire Gauge [Max]	28 AWG	26 - 28 AWG
Wire Gauge [Min]	22 AWG	20 - 22 AWG

M24308/2 Series

DSUB CONN,CRIMP, SOCKET, ZINC

Part	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Contact Material	Contact Finish	Shell Size, Connector Layout	Connector Style	Number of Rows	Connector Type	Contact Type	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Min]	Wire Gauge [Max]	Color	Dielectric Material	Flange Feature	Termination	Note	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Mating Cycles	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol Positronic M24308/2-2Z	UL94 V-0	7.5 A	15	Copper Alloy	Gold	2	D-Sub	2	Receptacle, Female Sockets	Signal	Steel, Yellow Chromate Plated Zinc	-55 °C	125 °C	20 AWG	26 AWG	Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)	Crimp
Amphenol Positronic M24308/2-489F			44				D-Sub, High Density	3	Receptacle for Female Contacts	Signal	Steel, Yellow Cadmium Plated	-55 °C	125 °C			Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)		Contacts Not Included	3	B, DB	500
Amphenol Positronic M24308/2-11Z	UL94 V-0	5 A	15	Copper Alloy	Gold		D-Sub, High Density	3	Receptacle, Female Sockets	Signal	Steel, Yellow Chromate Plated Zinc	-55 °C	125 °C	22 AWG	28 AWG	Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)	Crimp			DE, E		1	High Density
Amphenol Positronic M24308/2-290F			78				D-Sub, High Density		Receptacle for Female Contacts	Signal	Steel, Yellow Cadmium Plated	-55 °C	125 °C			Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)		Contacts Not Included			500
Amphenol Positronic M24308/2-5Z	UL94 V-0	7.5 A	50	Copper Alloy	Gold	5	D-Sub	3	Receptacle, Female Sockets	Signal	Steel, Yellow Chromate Plated Zinc	-55 °C	125 °C	20 AWG	26 AWG	Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)	Crimp
Amphenol Positronic M24308/2-12F	UL94 V-0	5 A	26	Copper Alloy	Gold	2	D-Sub, High Density	3	Receptacle, Female Sockets	Signal	Steel, Yellow Cadmium Plated	-55 °C	125 °C	22 AWG	28 AWG	Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)	Crimp							(DA, A) High Density
Amphenol Positronic M24308/2-5F	UL94 V-0	7.5 A	50	Copper Alloy	Gold	5	D-Sub	3	Receptacle, Female Sockets	Signal	Steel, Yellow Cadmium Plated	-55 °C	125 °C	20 AWG	26 AWG	Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)	Crimp
Amphenol Positronic M24308/2-1Z	UL94 V-0	7.5 A	9	Copper Alloy	Gold		D-Sub	2	Receptacle, Female Sockets	Signal	Steel, Yellow Chromate Plated Zinc	-55 °C	125 °C	20 AWG	26 AWG	Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)	Crimp								DE, E	1
Amphenol Positronic M24308/2-517	UL94 V-0	7.5 A	15	Copper Alloy	Gold	2	D-Sub	2	Receptacle, Female Sockets	Signal	Nickel Plated, Steel	-55 °C	125 °C	20 AWG	26 AWG	Natural	Polyester, Glass Filled	Housing/Shell (Unthreaded)	Crimp
Amphenol Positronic M24308/2-285Z			50			5	D-Sub	3	Receptacle for Female Contacts	Signal	Steel, Yellow Chromate Plated Zinc	-55 °C	125 °C					Housing/Shell (Unthreaded)
