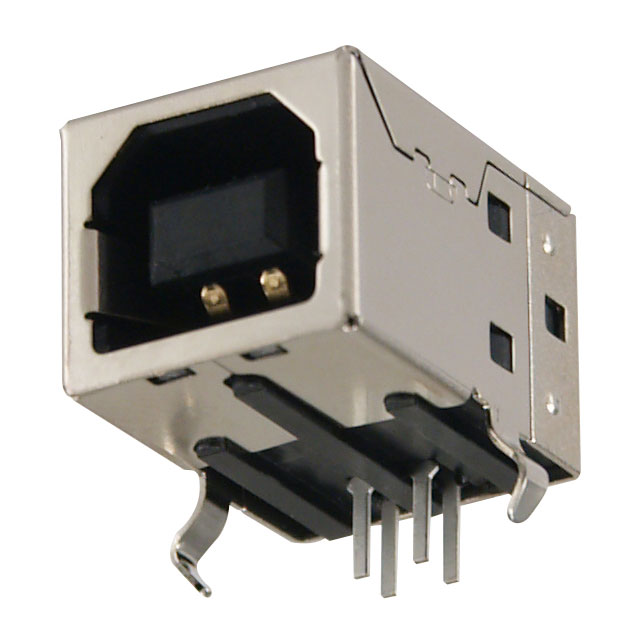

KUSBEX-BSFS1N-B

Active

Kycon, Inc.

CONN RCPT USB2.0 TYPEB 4POS R/A

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN RCPT USB2.0 TYPEB 4POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	KUSBEX-BSFS1N-B

Connector Type	USB-B
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

CONN RCPT USB2.0 TYPEB 4POS R/A

Part	Specifications	Gender	Mounting Type	Number of Ports	Shielding	Mating Cycles	Insulation Color	Voltage - Rated	Material Flammability Rating	Number of Contacts [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Current Rating (Amps)	Termination	Connector Type	Contact Finish	Shell/Shielding Material
Kycon, Inc. KUSBEX-BSFS1N-B	USB 2.0	Receptacle	Through Hole, Right Angle	1	Shielded	1500	Black	30 VAC	UL94 V-0	4	-40 °C	105 ░C	Horizontal	1.5 A	Solder	USB-B	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
