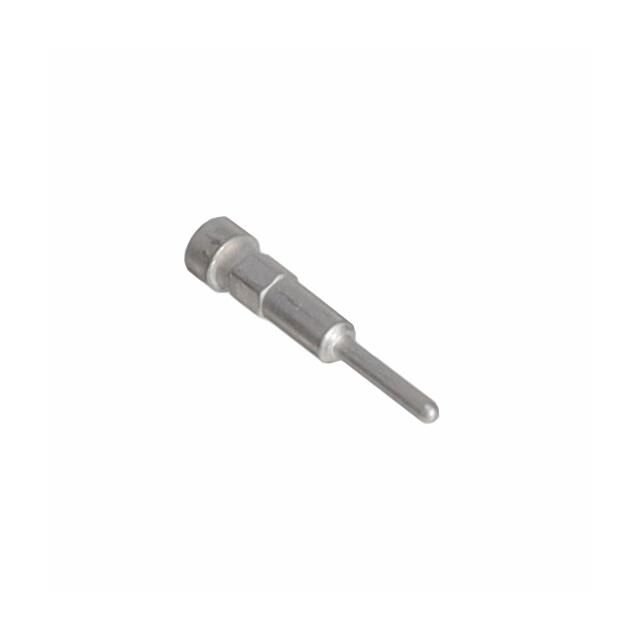

9462-0-15-80-21-84-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	9462-0-15-80-21-84-04-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.37 mm
Flange Diameter [diameter]	0.054 in
Length - Overall	7.37 mm
Length - Overall	0.29 in
Mounting Hole Diameter [diameter]	1.09 mm
Mounting Hole Diameter [diameter]	0.043 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Press-Fit, Hex

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 9462-0-15-80-21-14-04-0	-55 °C	125 °C	7.37 mm	0.29 in	0.02 in	0.51 mm	0.79 mm	0.031 in	1.09 mm	0.043 in	Press-Fit Hex	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	1.37 mm	0.054 in	Gold	Beryllium Copper	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 9462-0-15-15-21-14-04-0	-55 °C	125 °C	7.37 mm	0.29 in	0.02 in	0.51 mm	0.79 mm	0.031 in	1.09 mm	0.043 in	Press-Fit Hex	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	1.37 mm	0.054 in	Gold	Beryllium Copper	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 9462-0-15-80-21-84-04-0	-55 °C	125 °C	7.37 mm	0.29 in	0.02 in	0.51 mm	0.79 mm	0.031 in	1.09 mm	0.043 in	Press-Fit Hex	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	1.37 mm	0.054 in	Tin	Beryllium Copper	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 9462-0-15-80-21-27-04-0	-55 °C	125 °C	7.37 mm	0.29 in	0.02 in	0.51 mm	0.79 mm	0.031 in	1.09 mm	0.043 in	Press-Fit Hex	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	1.37 mm	0.054 in	Gold	Beryllium Copper	30 Áin	0.76 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.58

General part information

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Press-Fit, Hex
