LFWLP120-1001

Active

Bel Power Solutions

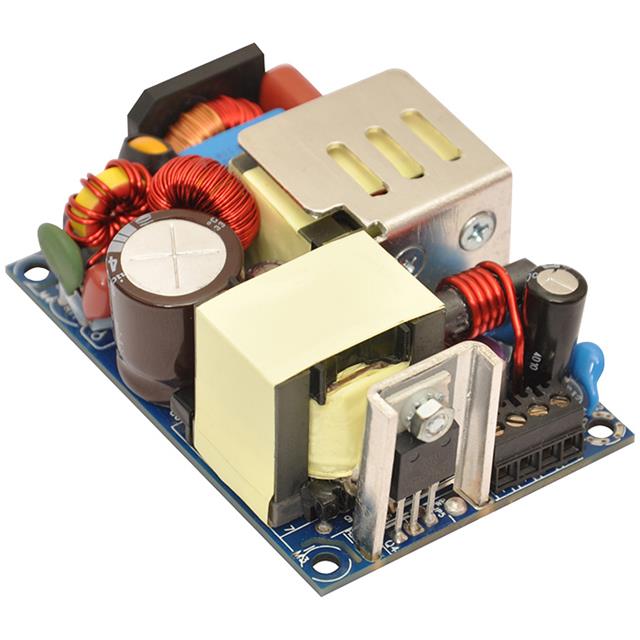

AC/DC CONVERTER 12V 100W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	LFWLP120-1001

Applications	ITE (Commercial)
Approval Agency	cUL, CE, UL, CB, NEMKO
Current - Output 1	8.33 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	120 W, 100 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.18 in
Size / Dimension [z]	30 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input	390 VDC
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

AC/DC Power Modules POWER SUPPLY,LFWLP120-1301

Part	Current - Output 1	Approval Agency	Number of Outputs	Minimum Load Required	Features	Voltage - Output 1	Type	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input	Voltage - Input [Min]	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Efficiency	Power (Watts)	Mounting Type
Bel Power Solutions LFWLP120-1001	8.33 A	CB, CE, cUL, NEMKO, UL	1		Adjustable Output, PFC, Standby Output, Universal Input	12 V	Open Frame	3000 V	264 VAC	390 VDC	85 VAC	62368-1	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	ITE (Commercial)	90 %	100 W, 120 W	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	168	$ 56.34

General part information

AC/DC Power Modules POWER SUPPLY,LFWLP120-1301
