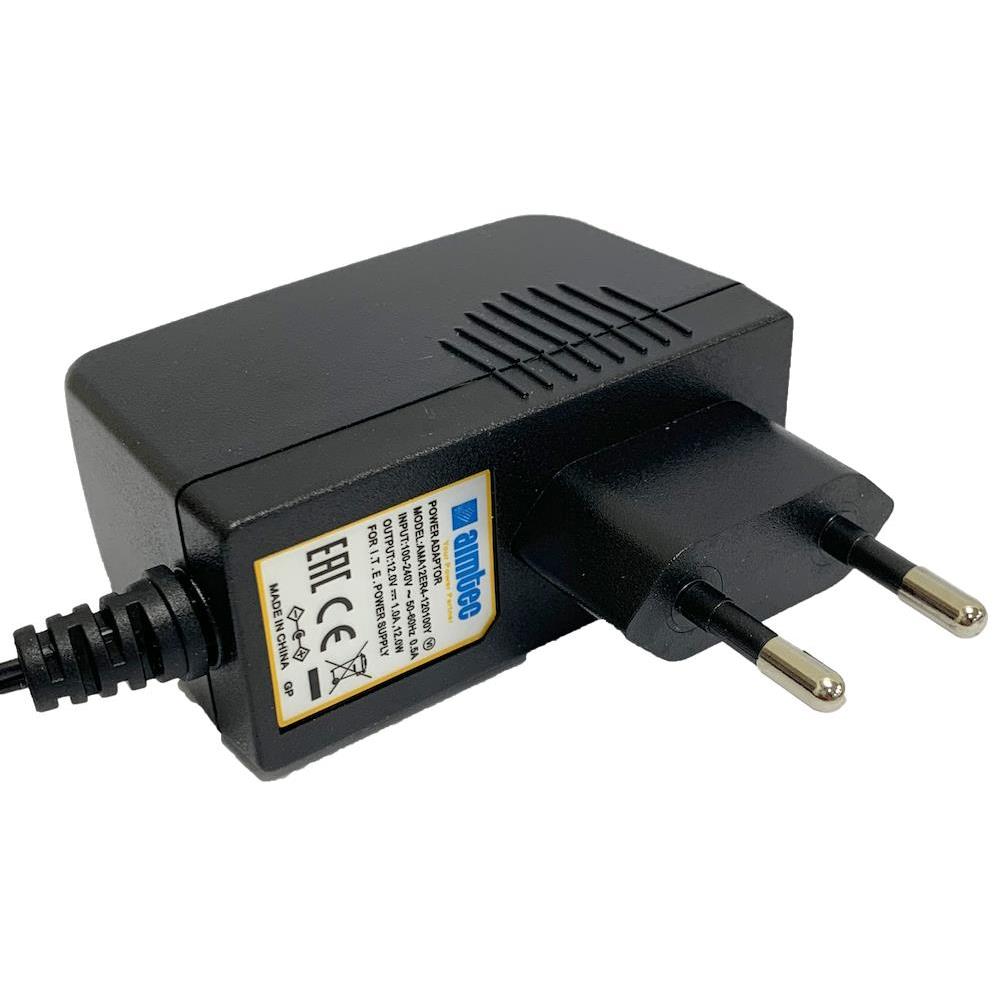

AMA12ER4-120100Y

Active

aimtec

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMA12ER4-120100Y

Active

aimtec

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMA12ER4-120100Y

Applications	ITE (Commercial)
Approval Agency	UL, CE
Cord Length	60.2 in
Cord Length	1.5 m
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	Europe
Size / Dimension [x]	69 mm
Size / Dimension [x]	2.72 "
Size / Dimension [y]	1.18 in
Size / Dimension [y]	30 mm
Size / Dimension [z]	3.28 in
Size / Dimension [z]	83.3 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	79 g
Weight	0.174 lb

AMA12 Series

Part	Polarization	Region Utilized	Input Type	Efficiency	Input Connector	Current - Output (Max) [Max]	Standard Number	Cord Length	Cord Length	Power (Watts)	Applications	Weight	Weight	Voltage - Output	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Output Connector [diameter]	Output Connector [z]	Output Connector	Operating Temperature [Max]	No Load Power Consumption [Max]	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Form	Output Connector [x]
aimtec AMA12ER1L-050200Y	Positive Center	Europe	Fixed Blade	Level VI	CEE 7/16	2 A	62368-1	60.2 in	1.5 m	10 W	ITE (Commercial)	79 g	0.174 lb	5 V	3.28 in	69 mm	2.72 "	1.18 in	83.3 mm	30 mm	1.35 mm 3.5 mm	9.5 mm	Barrel Plug R/A	40 °C	75 mW	CE UL	90 VAC	264 VAC	Wall Mount (Class II)
aimtec AMA12UR4-120100Y	Positive Center	North America	Fixed Blade	Level VI	NEMA 1-15P	1 A	62368-1	60.2 in	1.5 m	12 W	ITE (Commercial)	79 g	0.174 lb	12 V	2.65 in	70 mm	2.76 in	1.22 "	67.3 mm	31 mm	2.1 mm 5.5 mm		Barrel Plug	40 °C	75 mW	CE UL	90 VAC	264 VAC	Wall Mount (Class II)	9.5 mm
aimtec AMA12ER4-050200Y	Positive Center	Europe	Fixed Blade	Level VI	CEE 7/16	2 A	62368-1	60.2 in	1.5 m	10 W	ITE (Commercial)	79 g	0.174 lb	5 V	3.28 in	69 mm	2.72 "	1.18 in	83.3 mm	30 mm	2.1 mm 5.5 mm		Barrel Plug	40 °C	75 mW	CE UL	90 VAC	264 VAC	Wall Mount (Class II)	9.5 mm
aimtec AMA12ER5-050200Y	Positive Center	Europe	Fixed Blade	Level VI	CEE 7/16	2 A	62368-1	60.2 in	1.5 m	10 W	ITE (Commercial)	79 g	0.174 lb	5 V	3.28 in	69 mm	2.72 "	1.18 in	83.3 mm	30 mm	2.5 mm 5.5 mm		Barrel Plug	40 °C	75 mW	CE UL	90 VAC	264 VAC	Wall Mount (Class II)	9.5 mm
aimtec AMA12ER4-120100Y	Positive Center	Europe	Fixed Blade	Level VI	CEE 7/16	1 A	62368-1	60.2 in	1.5 m	12 W	ITE (Commercial)	79 g	0.174 lb	12 V	3.28 in	69 mm	2.72 "	1.18 in	83.3 mm	30 mm	2.1 mm 5.5 mm		Barrel Plug	40 °C	75 mW	CE UL	90 VAC	264 VAC	Wall Mount (Class II)	9.5 mm
aimtec AMA12UR5-050200Y	Positive Center	North America	Fixed Blade	Level VI	NEMA 1-15P	2 A	62368-1	59 in	1.5 m	10 W	ITE (Commercial)	79 g	0.174 lb	5 V	2.65 in	69 mm	2.72 "	1.18 in	67.3 mm	30 mm	2.5 mm 5.5 mm		Barrel Plug	40 °C	75 mW	CE EN IEC UL	90 VAC	264 VAC	Wall Mount (Class II)	9.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.13
		5	$ 12.95
		10	$ 12.23
		15	$ 11.98
		25	$ 11.51
		50	$ 10.79
		100	$ 10.07
		250	$ 9.71
		500	$ 9.59

Description

General part information

AMA12 Series

12V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
