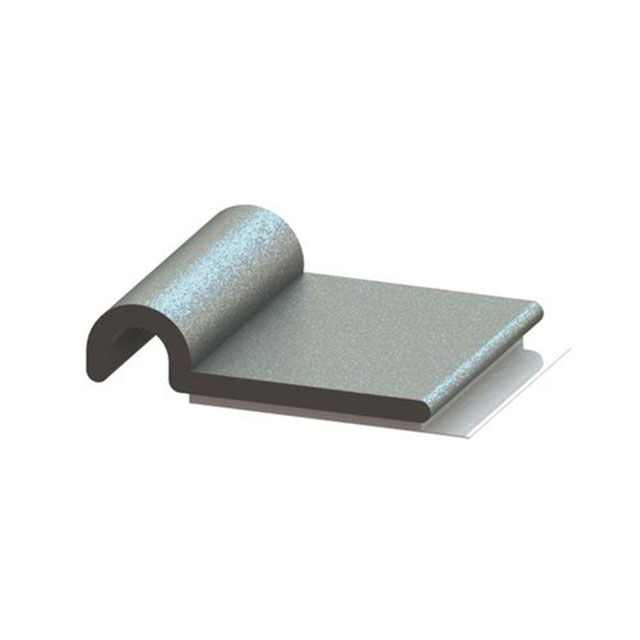

HUC-2-RT

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, 3.2 MM, PVC (POLYVINYLCHLORIDE), BLACK, 18.3 MM, 15.9 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, 3.2 MM, PVC (POLYVINYLCHLORIDE), BLACK, 18.3 MM, 15.9 MM

Technical Specifications

Parameters and characteristics for this part

Specification	HUC-2-RT

Adhesive	Acrylic Based (RMS-15)
Color	Black
Features	Flame Retardant
Height [z]	0.172 in
Height [z]	4.37 mm
Length	0.719 "
Length	18.26 mm
Material	Polyvinyl Chloride (PVC)
Material Flammability Rating	UL94 V-0
Material Thickness	1.2 mm
Material Thickness	0.047 in
Mounting Type	Adhesive
Opening Size	3.18 mm
Opening Size [z]	0.125 in
Type Attributes	Half
Width	15.88 mm
Width	0.625 in

Part	Mounting Type	Height [z]	Height [z]	Material Thickness	Material Thickness	Material Flammability Rating	Features	Color	Length	Length	Type Attributes	Material	Width	Width	Adhesive	Opening Size [z]	Opening Size	Opening Size [diameter]
Essentra Access Solutions HUC-6-RT	Adhesive	10.72 mm	0.422 in	1.2 mm	0.047 in	UL94 V-0	Flame Retardant	Black	24.61 mm	0.969 in	Half	Polyvinyl Chloride (PVC)	15.88 mm	0.625 in	Acrylic Based (RMS-15)
Essentra Access Solutions HUC-2-RT	Adhesive	4.37 mm	0.172 in	1.2 mm	0.047 in	UL94 V-0	Flame Retardant	Black	18.26 mm	0.719 "	Half	Polyvinyl Chloride (PVC)	15.88 mm	0.625 in	Acrylic Based (RMS-15)	0.125 in	3.18 mm
Essentra Access Solutions HUC-4-RT	Adhesive	7.54 mm	0.297 in	1.2 mm	0.047 in	UL94 V-0	Flame Retardant	Black	21.44 mm	0.844 in	Half	Polyvinyl Chloride (PVC)	15.88 mm	0.625 in	Acrylic Based (RMS-15)		6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, U-Type Black Adhesive 0.125" (3.18mm)

Technical documentation and resources

No documents available
