M2022ES1W01/U

Obsolete

NKK Switches

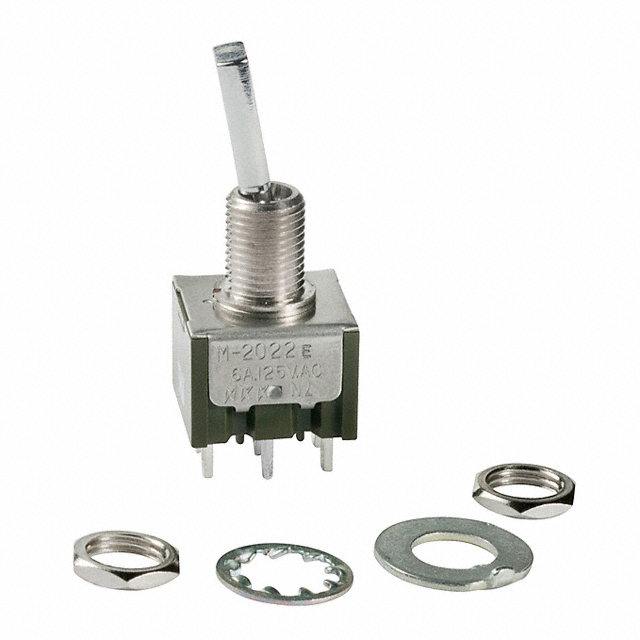

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2022ES1W01/U

Actuator Length [x]	11.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Bushing Thread	Electrical Life	Current Rating (Amps)	Voltage Rating - DC	Illumination	Actuator Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Termination Style	Switch Function	Circuit	Panel Cutout Dimensions [diameter]
NKK Switches M2022ES1W01/U	1/4-40	25000 Steps	4 A 6 A	30 V	Non-Illuminated	Brass Chrome Plated	Epoxy Sealed Terminals	-30 ░C	85 °C	Flatted	125 V	11.4 mm	Solder Lug	On-On	DPDT	6.5 mm
NKK Switches M2022ES1A01	1/4-40	25000 Steps	4 A 6 A	30 V	Non-Illuminated	Brass Chrome Plated	Epoxy Sealed Terminals	-30 ░C	85 °C	Flatted	125 V	11.4 mm	Solder Lug	On-On	DPDT	6.5 mm
NKK Switches M2022ES1W03	1/4-40	25000 Steps	4 A 6 A	30 V	Non-Illuminated	Brass Chrome Plated	Epoxy Sealed Terminals	-30 ░C	85 °C	Flatted	125 V	11.4 mm	PC Pin	On-On	DPDT	6.5 mm
NKK Switches M2022ES1W01	1/4-40	25000 Steps	4 A 6 A	30 V	Non-Illuminated	Brass Chrome Plated	Epoxy Sealed Terminals	-30 ░C	85 °C	Flatted	125 V	11.4 mm	Solder Lug	On-On	DPDT	6.5 mm
NKK Switches M2022ES1G01	1/4-40	50000 Cycles	0.4 VA	28 V	Non-Illuminated	Brass Chrome Plated	Epoxy Sealed Terminals	-30 ░C	85 °C	Flatted	28 V	11.4 mm	Solder Lug	On-On	DPDT	6.5 mm
NKK Switches M2022ES4W01	M6 x 0.75	25000 Steps	4 A 6 A	30 V	Non-Illuminated	Brass Chrome Plated	Epoxy Sealed Terminals	-30 ░C	85 °C	Flatted	125 V	11.4 mm	Solder Lug	On-On	DPDT	6.5 mm
NKK Switches M2022ES1G06	1/4-40	50000 Cycles	0.4 VA	28 V	Non-Illuminated	Brass Chrome Plated	Epoxy Sealed Terminals	-30 ░C	85 °C	Flatted	28 V	11.4 mm	Wire Wrap	On-On	DPDT	6.5 mm
