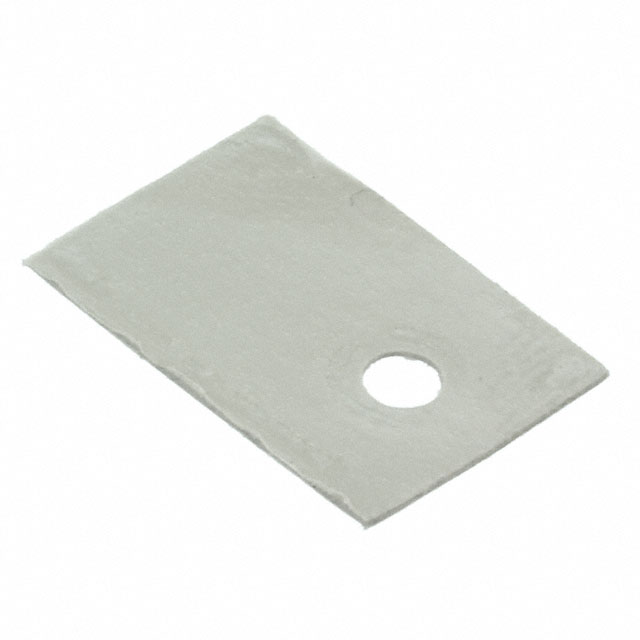

DC0011/10-TG-A486G-0.3-2A
Activet-Global Technology
THERM PAD 19.05MMX12.7MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
DC0011/10-TG-A486G-0.3-2A
Activet-Global Technology
THERM PAD 19.05MMX12.7MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0011/10-TG-A486G-0.3-2A | DC0011/10 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | - | Viscose |
| Color | Gray | Red, Yellow, White, Gray |
| Material | - | Silicone |
| Outline [x] | 19.05 mm | 19.05 mm |
| Outline [y] | 12.7 mm | 12.7 mm |
| Shape | Rectangular | Rectangular |
| Shelf Life | 12 Months | 12 - 24 Months |
| Shelf Life Start | Date of Purchase | Date of Purchase |
| Thermal Conductivity | 6 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.1 mm |
| Thickness | - | 0.0039 in |
| Thickness | - | 0.005 in |
| Thickness | - | 0.127 mm |
| Thickness [custom] | 0.305 mm | 0.254 - 0.305 mm |
| Thickness [custom] | 0.012 " | 0.01 - 0.012 in |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | TO-220 | TO-220 |
DC0011/10 Series
THERM PAD 19.05MMX12.7MM RED
| Part | Material | Color | Shelf Life | Usage | Thermal Conductivity | Thickness | Thickness | Shape | Type | Shelf Life Start | Outline [x] | Outline [y] | Thickness [custom] | Thickness [custom] | Adhesive | Backing, Carrier | Thickness [x] | Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0011/10-TG-A482K-0.1-0 | Silicone | Red | 24 Months | TO-220 | 2.3 W/m-K | 0.1 mm | 0.0039 in | Rectangular | Die-Cut Pad, Sheet | Date of Purchase | 19.05 mm | 12.7 mm | ||||||
t-Global Technology DC0011/10-TG-A373F-0.25-2A | Yellow | 12 Months | TO-220 | 1.4 W/m-K | Rectangular | Die-Cut Pad, Sheet | 19.05 mm | 12.7 mm | 0.254 mm | 0.01 in | Adhesive - Both Sides | |||||||
t-Global Technology DC0011/10-TI900-0.12-2A | Silicone | White | 24 Months | TO-220 | 1.8 W/m-K | Rectangular | Die-Cut Pad, Sheet | 19.05 mm | 12.7 mm | Adhesive - Both Sides | Viscose | 0.005 in | 0.127 mm | |||||
t-Global Technology DC0011/10-TG-A486G-0.3-2A | Gray | 12 Months | TO-220 | 6 W/m-K | Rectangular | Die-Cut Pad, Sheet | Date of Purchase | 19.05 mm | 12.7 mm | 0.305 mm | 0.012 " | Adhesive - Both Sides | ||||||
t-Global Technology DC0011/10-TI900-0.12-0 | Silicone | White | 24 Months | TO-220 | 1.8 W/m-K | Rectangular | Die-Cut Pad, Sheet | 19.05 mm | 12.7 mm | Viscose | 0.005 in | 0.127 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.99 | |||
| 100 | $ 0.90 | |||
| 1000 | $ 0.71 | |||
| 5000 | $ 0.69 | |||
| 10000 | $ 0.64 | |||
Description
General part information
DC0011/10 Series
Thermal Pad Gray 19.05mm x 12.70mm Rectangular Adhesive - Both Sides
