DC0011/10-TI900-0.12-0

Active

t-Global Technology

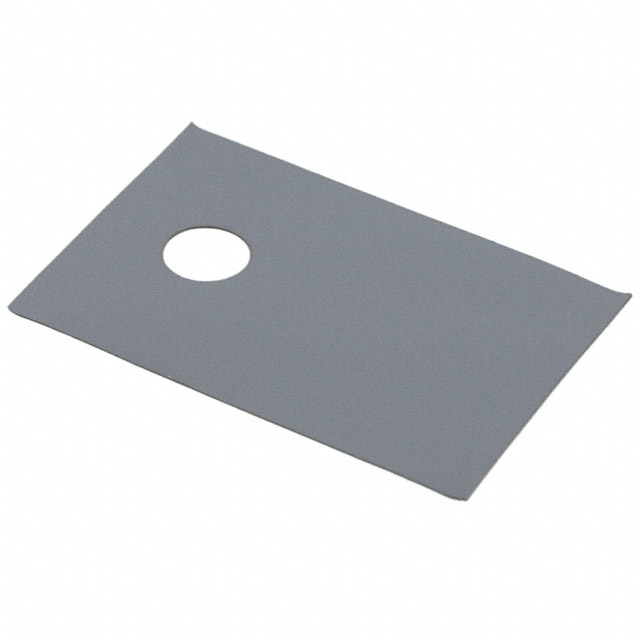

THERM PAD 19.05MMX12.7MM WHT

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 19.05MMX12.7MM WHT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad White 19.05mm x 12.70mm Rectangular

Technical documentation and resources

Part	Material	Color	Shelf Life	Usage	Thermal Conductivity	Thickness	Thickness	Shape	Type	Shelf Life Start	Outline [x]	Outline [y]	Thickness [custom]	Thickness [custom]	Adhesive	Backing, Carrier	Thickness [x]	Thickness [x]
t-Global Technology DC0011/10-TG-A482K-0.1-0	Silicone	Red	24 Months	TO-220	2.3 W/m-K	0.1 mm	0.0039 in	Rectangular	Die-Cut Pad, Sheet	Date of Purchase	19.05 mm	12.7 mm
t-Global Technology DC0011/10-TG-A373F-0.25-2A		Yellow	12 Months	TO-220	1.4 W/m-K			Rectangular	Die-Cut Pad, Sheet		19.05 mm	12.7 mm	0.254 mm	0.01 in	Adhesive - Both Sides
t-Global Technology DC0011/10-TI900-0.12-2A	Silicone	White	24 Months	TO-220	1.8 W/m-K			Rectangular	Die-Cut Pad, Sheet		19.05 mm	12.7 mm			Adhesive - Both Sides	Viscose	0.005 in	0.127 mm
t-Global Technology DC0011/10-TG-A486G-0.3-2A		Gray	12 Months	TO-220	6 W/m-K			Rectangular	Die-Cut Pad, Sheet	Date of Purchase	19.05 mm	12.7 mm	0.305 mm	0.012 "	Adhesive - Both Sides
t-Global Technology DC0011/10-TI900-0.12-0	Silicone	White	24 Months	TO-220	1.8 W/m-K			Rectangular	Die-Cut Pad, Sheet		19.05 mm	12.7 mm				Viscose	0.005 in	0.127 mm
