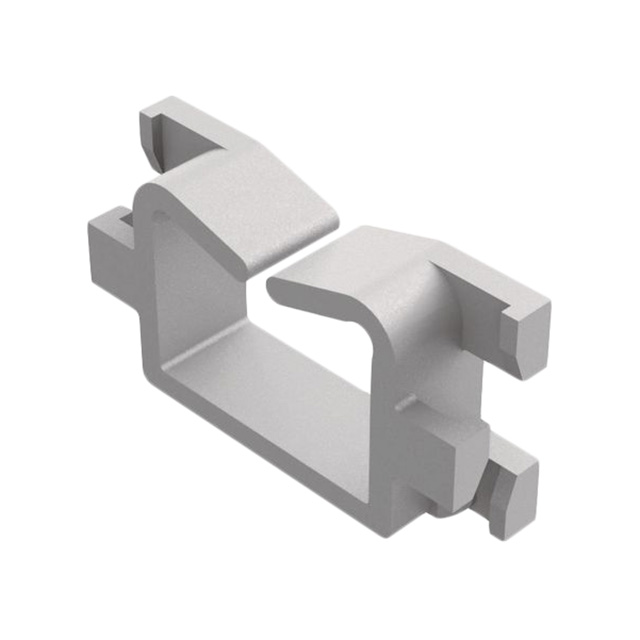

EWSE-3-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	EWSE-3-01

Color	Gray
Height [z]	9.91 mm
Height [z]	0.39 "
Length	0.79 "
Length	20.07 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In, Edge
Opening Size [x]	11.68 mm
Opening Size [x]	0.46 in
Opening Size [y]	6.6 mm
Opening Size [y]	0.26 in
Panel Thickness [Max] [custom]	0.079 "
Panel Thickness [Max] [custom]	2.01 mm
Panel Thickness [Min] [custom]	0.063 "
Panel Thickness [Min] [custom]	1.6 mm
Type	Clip, Wire Saddle
Width	4.83 mm
Width [x]	0.19 in

Part	Height [z]	Height [z]	Panel Thickness [Min] [custom]	Panel Thickness [Min] [custom]	Panel Thickness [Max] [custom]	Panel Thickness [Max] [custom]	Material	Width	Width [x]	Color	Material Flammability Rating	Opening Size [x]	Opening Size [y]	Opening Size [x]	Opening Size [y]	Type	Mounting Type	Length	Length	Opening Size [z]	Opening Size [z]	Width
Essentra Access Solutions EWSE-3-01	9.91 mm	0.39 "	0.063 "	1.6 mm	0.079 "	2.01 mm	Polyamide (PA66) Nylon 6/6	4.83 mm	0.19 in	Gray	UL94 V-2	11.68 mm	6.6 mm	0.46 in	0.26 in	Clip Wire Saddle	Edge Push In	0.79 "	20.07 mm
Essentra Access Solutions EWSE-12.8-01							Polyamide (PA66) Nylon 6/6	3.56 mm		Natural	UL94 V-2	9.9 mm		0.39 in		Clip Wire Saddle	Edge Push In	0.64 in	16.26 mm	0.2 in	5.08 mm	0.14 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Gray Push In, Edge 0.460" L x 0.260" H (11.68mm x 6.60mm)
