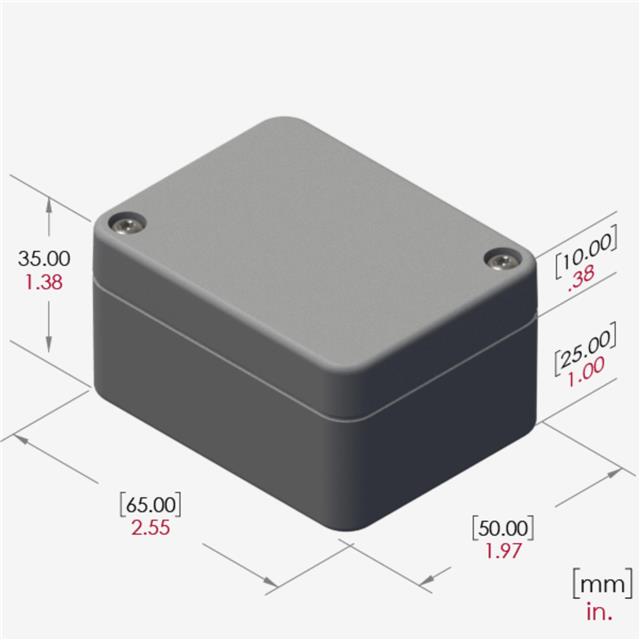

Specification	RB32P04G10G

Area (L x W)	5.03 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Watertight
Height	1.378 in
Material	Polycarbonate (PC), Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	NEMA 4, IP67
Size / Dimension Length	2.559 in
Size / Dimension Width	1.969 in
Thickness	0.098 in

RB32P04G Series

Part	Material	Thickness	Ratings	Design	Features	Height	Container Type	Material Flammability Rating	Color	Size / Dimension Width	Size / Dimension Length	Area (L x W)
Serpac RB32P04G10C	Plastic Polycarbonate Polycarbonate (PC)	0.098 in	IP67 NEMA 4	Cover Included	PCB Supports Wall Mount Watertight	1.378 in	Box	UL94 V-0	Clear Gray Cover/Door	1.969 in	2.559 in	5.03 in²
Serpac RB32P04G10G	Plastic Polycarbonate Polycarbonate (PC)	0.098 in	IP67 NEMA 4	Cover Included	PCB Supports Wall Mount Watertight	1.378 in	Box	UL94 V-0	Gray	1.969 in	2.559 in	5.03 in²
