C14610F0326004

Active

Amphenol Tuchel Industrial

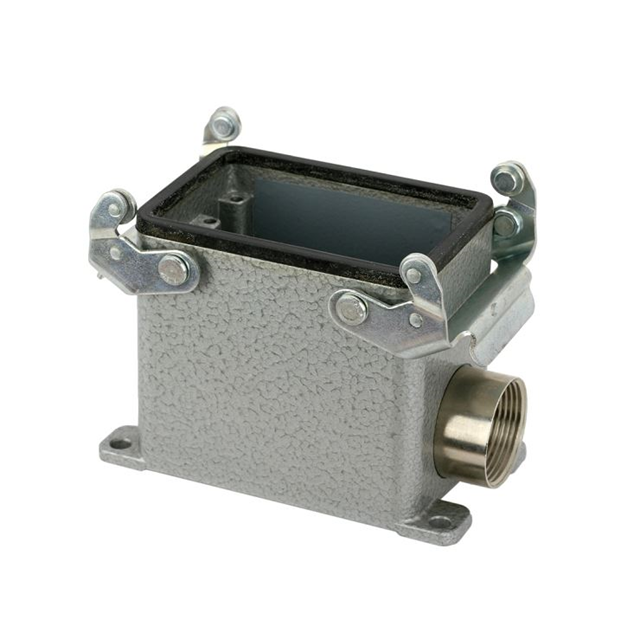

CONN BASE SIDE ENTRY SZA32 PG21

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA32 PG21

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0326004

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A32
Size / Dimension [x]	106 mm
Size / Dimension [x]	4.173 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	2.953 in
Size / Dimension [z]	75 mm
Style	Side Entry
Thread Size	PG21

Part	Housing Material	Connector Type	Features	Style	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Lock Location	Ingress Protection	Size
Amphenol Tuchel Industrial C14610F0326004	Aluminum Alloy Die Cast	Base - Box Mount	Feed Through	Side Entry	100 °C	-40 °C	PG21	2.953 in	2.244 "	106 mm	75 mm	57 mm	4.173 "	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	A32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 53.98

General part information

Base - Box Mount Connector Side Entry PG21 A32 IP65 - Dust Tight, Water Resistant
