5931 Series

Part	Body Material	Contact Material	Contact Finish	Mounting Type	Termination	Gender	Plug/Mating Plug Diameter	Color	Insulation	Type
Pomona Electronics 5931-9	Nylon PA Polyamide	Brass	Gold	Panel Mount	Solder	Female	Standard Banana	White	Mating End Insulated	Banana Jack
Pomona Electronics 5931-6	Nylon PA Polyamide	Brass	Gold	Panel Mount	Solder	Female	Standard Banana	Blue	Mating End Insulated	Banana Jack
Pomona Electronics 5931-2	Nylon PA Polyamide	Brass	Gold	Panel Mount	Solder	Female	Standard Banana	Red	Mating End Insulated	Banana Jack

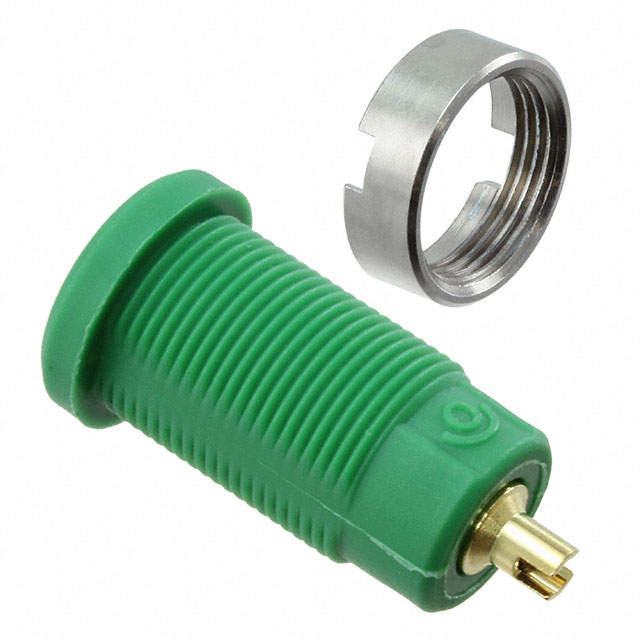

Pomona Electronics 5931-5	Nylon PA Polyamide	Brass	Gold	Panel Mount	Solder	Female	Standard Banana	Green	Mating End Insulated	Banana Jack
Pomona Electronics 5931-4	Nylon PA Polyamide	Brass	Gold	Panel Mount	Solder	Female	Standard Banana	Yellow	Mating End Insulated	Banana Jack
Pomona Electronics 5931-0	Nylon PA Polyamide	Brass	Gold	Panel Mount	Solder	Female	Standard Banana	Black	Mating End Insulated	Banana Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
