MBC401-1012-S

Active

Bel Power Solutions

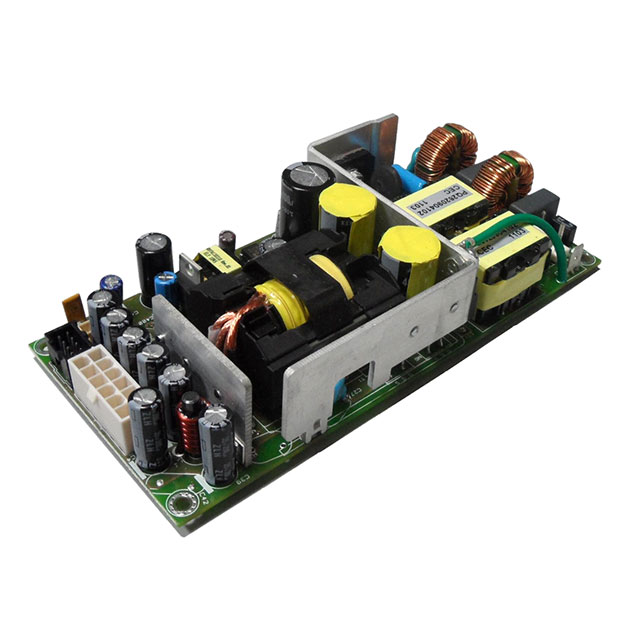

AC/DC CONVERTER 12V 400W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 400W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 272.02

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC, 170 ~ 270 VDC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MBC401-1012-S	MBC401 Series

Applications	Medical	Medical
Approval Agency	cURus, DEMKO, CE	cURus, DEMKO, CE
Current - Output 1	33.3 A	8.3 - 33.3 A
Efficiency	94 %	94 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	-	398 - 401 W
Size / Dimension [x]	183 mm	166.5 - 183 mm
Size / Dimension [x]	7.2 in	6.56 - 7.2 in
Size / Dimension [y]	3.32 "	3.32 "
Size / Dimension [y]	84.4 mm	84.4 mm
Size / Dimension [z]	41 mm	40 - 41 mm
Size / Dimension [z]	1.61 "	1.57 - 1.61 "
Standard Number	60601-1	60601-1
Type	Enclosed	Enclosed, Open Frame
Voltage - Input [Max]	270 VDC, 264 VAC	264 - 270 VDC
Voltage - Input [Min]	90 VAC, 170 VDC	90 - 170 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 48 V

AC/DC CONVERTER 12V 400W

Part	Voltage - Isolation	Number of Outputs	Approval Agency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Mounting Type	Efficiency	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)
Bel Power Solutions MBC401-1012-S	4000 V	1	CE, cURus, DEMKO	12 V	-20 °C	70 °C	Enclosed	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Chassis Mount	94 %	60601-1	264 VAC, 270 VDC	90 VAC, 170 VDC	Medical	33.3 A	183 mm	41 mm	7.2 in	3.32 "	1.61 "	84.4 mm
Bel Power Solutions MBC401-1028-UC	4000 V	1	CE, cURus, DEMKO	28 V	-20 °C	70 °C	Open Frame	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Chassis Mount	94 %	60601-1	264 VAC, 270 VDC	90 VAC, 170 VDC	Medical	14.3 A	166.5 mm	40 mm	6.56 in	3.32 "	1.57 "	84.4 mm
Bel Power Solutions MBC401-1024-PC	4000 V	1	CE, cURus, DEMKO	24 V	-20 °C	70 °C	Enclosed	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Chassis Mount	94 %	60601-1	264 VAC, 270 VDC	90 VAC, 170 VDC	Medical	16.7 A	166.5 mm	41 mm	6.56 in	3.32 "	1.61 "	84.4 mm	401 W
Bel Power Solutions MBC401-1048-S	4000 V	1	CE, cURus, DEMKO	48 V	-20 °C	70 °C	Enclosed	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	Chassis Mount	94 %	60601-1	264 VAC, 270 VDC	90 VAC, 170 VDC	Medical	8.3 A	183 mm	41 mm	7.2 in	3.32 "	1.61 "	84.4 mm	398 W
