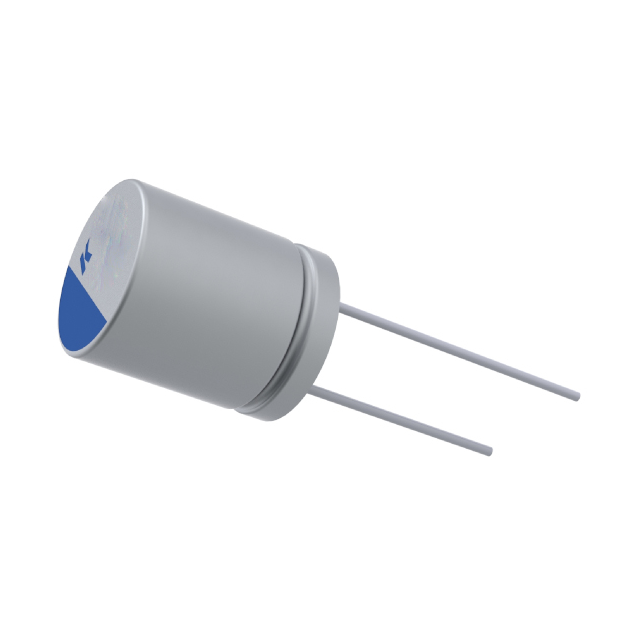

A750MW187M1JAAE020

Active

KEMET

CAP ALUM POLY 180UF 20% 63V TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM POLY 180UF 20% 63V TH

Technical Specifications

Parameters and characteristics for this part

Specification	A750MW187M1JAAE020

Applications	General Purpose
Capacitance	180 çF
ESR (Equivalent Series Resistance)	20 mOhms
Height - Seated (Max) [Max]	18 mm
Height - Seated (Max) [Max] [z]	0.709 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	4.95 A
Ripple Current @ Low Frequency	247.5 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	63 V

Part	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Capacitance	Package / Case	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Type	Lifetime @ Temp.	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)
KEMET A750MW687M1VAAE018	5 mm	0.197 in	4.69 A	10 mm	0.394 in	35 V	680 µF	Radial Can	Through Hole	0.709 "	18 mm	General Purpose	20 %	105 ░C	-55 °C	Polymer	2000 Hrs	234.5 mA
KEMET A750MW228M1CAAE010	5 mm	0.197 in	7 A	10 mm	0.394 in	16 V	2200 µF	Radial Can	Through Hole	0.709 "	18 mm	General Purpose	20 %	105 ░C	-55 °C	Polymer	2000 Hrs	350 mA	10 mOhm
KEMET A750MW188M1CAAE010	5 mm	0.197 in	7 A	10 mm	0.394 in	16 V	1800 µF	Radial Can	Through Hole	0.709 "	18 mm	General Purpose	20 %	105 ░C	-55 °C	Polymer	2000 Hrs	350 mA	10 mOhm
KEMET A750MW187M1JAAE020	5 mm	0.197 in	4.95 A	10 mm	0.394 in	63 V	180 çF	Radial Can	Through Hole	0.709 "	18 mm	General Purpose	20 %	105 ░C	-55 °C	Polymer	2000 Hrs	247.5 mA	20 mOhms
KEMET A750MW128M1EAAE014	5 mm	0.197 in	5.91 A	10 mm	0.394 in	25 VDC	1.2 mF	Radial Can	Through Hole	0.709 "	18 mm	General Purpose	20 %	105 ░C	-55 °C	Polymer	2000 Hrs		14 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

180 µF 63 V Aluminum - Polymer Capacitors Radial, Can 20mOhm 2000 Hrs @ 105°C
