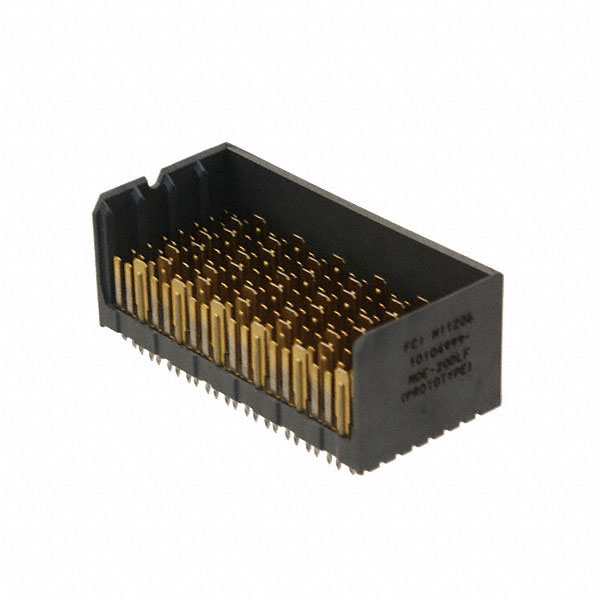

10104999-M0E-20DLF

Obsolete

Amphenol ICC (FCI)

CONN HEADER XCEDE PCB

Deep-Dive with AI

Search across all available documentation for this part.

Documents10104999 Drawing Datasheet

10104999-M0E-20DLF

Obsolete

Amphenol ICC (FCI)

CONN HEADER XCEDE PCB

Deep-Dive with AI

Documents10104999 Drawing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10104999-M0E-20DLF

Connector Style	XCede®, Right Wall
Connector Type	Header, Male Pins and Blades
Connector Usage	Backplane
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	48
Contact Layout, Typical [custom]	52
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	8
Number of Positions Loaded	All
Termination	Press-Fit

10104999 Series

...

Part	Color	Contact Layout, Typical	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Connector Usage	Contact Finish	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Number of Columns	Connector Style	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Features
Amphenol ICC (FCI) 10104999-M0E-30B	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	Right Wall XCede®
Amphenol ICC (FCI) 10104999-M0E-20DLF			Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All			UL94 V-0	Press-Fit	8	Right Wall XCede®	48	52
Amphenol ICC (FCI) 10104999-B0E-20B	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	XCede® Guide Left			Key
Amphenol ICC (FCI) 10104999-T0E-10B	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	Guide Right XCede®			Key
Amphenol ICC (FCI) 10104999-00E-60DLF	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	XCede®
Amphenol ICC (FCI) 10104999-G0E-70B	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	XCede® Guide Left			Key
Amphenol ICC (FCI) 10104999-U0E-50B	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	Guide Right XCede®			Key
Amphenol ICC (FCI) 10104999-R0E-30DLF	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	Guide Right XCede®			Key
Amphenol ICC (FCI) 10104999-W0E-40B	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	Guide Right XCede®			Key
Amphenol ICC (FCI) 10104999-10E-60B	Gray	72 Differential Pairs	Through Hole	0.76 Ám	30 Áin	Header Male Pins and Blades	Backplane	Gold or Gold GXT™	All	85 °C	-55 °C	UL94 V-0	Press-Fit	8	XCede®

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 22.66
		10	$ 19.84
		128	$ 17.76

Description

General part information

10104999 Series

Connector Header, Male Pins and Blades Through Hole XCede®, Right Wall

Documents

Technical documentation and resources

10104999 Drawing

Datasheet
