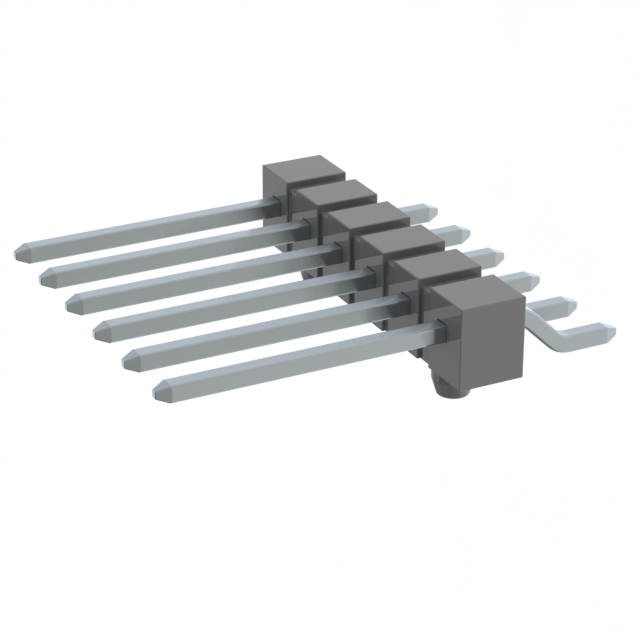

TSM-106-03-T-SH-A-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-106-03-T-SH-A-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-106-03-T-SH-A-TR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.42 in
Contact Length - Mating	10.67 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-106 Series

...

Part	Material Flammability Rating	Number of Rows	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Features	Contact Shape	Style	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Contact Type	Insulation Height	Insulation Height	Fastening Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions	Insulation Material	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded
Samtec Inc. TSM-106-02-T-DV-P	UL94 V-0	2	Phosphor Bronze	Black	0.1 in	2.54 mm	Pick and Place	Square	Board to Board Cable	Solder	105 ░C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	8.13 mm	0.32 in	Tin	12	Liquid Crystal Polymer (LCP)	All	2.54 mm	0.1 in
Samtec Inc. TSM-106-01-H-DV-A-P-TR	UL94 V-0	2	Phosphor Bronze	Black	0.1 in	2.54 mm	Board Guide Pick and Place	Square	Board to Board Cable	Solder	125 °C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	5.84 mm		Gold	12	Liquid Crystal Polymer (LCP)	All	2.54 mm	0.1 in	0.23 in	3 µin	0.076 µm	30 Áin	0.76 Ám	Gold
Samtec Inc. TSM-106-04-STL-DV	UL94 V-0	2	Phosphor Bronze	Black	0.1 in	2.54 mm		Square	Board to Board Cable	Solder	125 °C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	3.05 mm	0.12 in	Tin	12	Liquid Crystal Polymer (LCP)	All	2.54 mm	0.1 in				30 Áin	0.76 Ám	Gold
Samtec Inc. TSM-106-01-T-SV-LC-P	UL94 V-0	1	Phosphor Bronze	Black	0.1 in	2.54 mm	Board Lock Pick and Place	Square	Board to Board Cable	Solder	105 ░C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	5.84 mm		Tin	6	Liquid Crystal Polymer (LCP)	All			0.23 in
Samtec Inc. TSM-106-01-L-DV-A	UL94 V-0	2	Phosphor Bronze	Black	0.1 in	2.54 mm	Board Guide	Square	Board to Board Cable	Solder	125 °C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	5.84 mm		Tin	12	Liquid Crystal Polymer (LCP)	All	2.54 mm	0.1 in	0.23 in			10 çin	0.25 çm	Gold
Samtec Inc. TSM-106-01-F-DH-A-P	UL94 V-0	2	Phosphor Bronze	Black	0.1 in	2.54 mm	Board Guide Pick and Place	Square	Board to Board Cable	Solder	125 °C	-55 °C	Unshrouded	Header	Male Pin	0.24 in	6.1 mm	Push-Pull	Surface Mount Right Angle	5.84 mm		Tin	12	Liquid Crystal Polymer (LCP)	All	2.54 mm	0.1 in	0.23 in			3 µin	0.076 µm	Gold
Samtec Inc. TSM-106-03-T-SH-A-TR	UL94 V-0	1	Phosphor Bronze	Black	0.1 in	2.54 mm	Board Guide	Square	Board to Board Cable	Solder	105 ░C	-55 °C	Unshrouded	Header	Male Pin	0.12 in	3.05 mm	Push-Pull	Surface Mount Right Angle	10.67 mm	0.42 in	Tin	6	Liquid Crystal Polymer (LCP)	All
Samtec Inc. TSM-106-04-L-SV-LC	UL94 V-0	1	Phosphor Bronze	Black	0.1 in	2.54 mm		Square	Board to Board Cable	Solder	125 °C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	3.05 mm	0.12 in	Tin	6	Liquid Crystal Polymer (LCP)	All						10 çin	0.25 çm	Gold
Samtec Inc. TSM-106-03-L-DV-A-P-TR	UL94 V-0	2	Phosphor Bronze	Black	0.1 in	2.54 mm	Board Guide Pick and Place	Square	Board to Board Cable	Solder	125 °C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	10.67 mm	0.42 in	Tin	12	Liquid Crystal Polymer (LCP)	All	2.54 mm	0.1 in				10 çin	0.25 çm	Gold
Samtec Inc. TSM-106-03-L-DV-001	UL94 V-0	2	Phosphor Bronze	Black	0.1 in	2.54 mm		Square	Board to Board Cable	Solder	125 °C	-55 °C	Unshrouded	Cuttable Header	Male Pin	0.1 in	2.54 mm	Push-Pull	Surface Mount	10.67 mm	0.42 in	Tin	12	Liquid Crystal Polymer (LCP)		2.54 mm	0.1 in				10 çin	0.25 çm	Gold	11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	425	$ 0.99

Description

General part information

TSM-106 Series

Connector Header Surface Mount, Right Angle 6 position 0.100" (2.54mm)
