1-2118651-0
ActiveTE Connectivity AMP Connectors

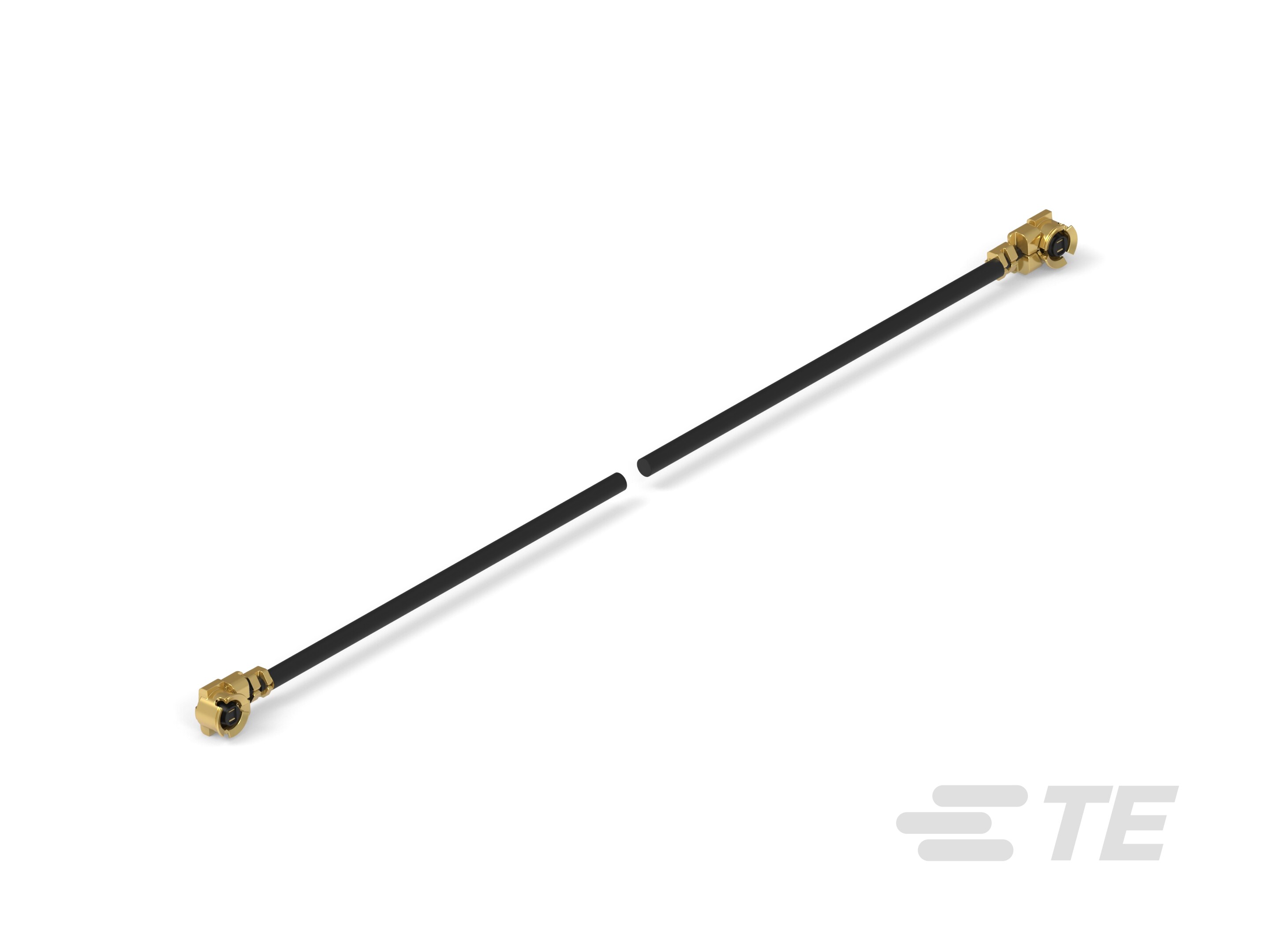

RF CA,UMCC GEN1-GEN1,1.13MM CABLE,L60MM
1-2118651-0
ActiveTE Connectivity AMP Connectors
RF CA,UMCC GEN1-GEN1,1.13MM CABLE,L60MM
Description
General part information
2118651 Series
UMCC Cable Assembly, .06 m [.196 ft], Black Cable, 0 – 9 GHz, 50 ohm, FEP Jacket, 30 AWG, 1.37 mm [.044 in] Diameter, UMCC GEN 1 Plug End A
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2118651-0 |
|---|---|
| 1st Connector | Right Angle, I-PEX MHF1 Plug, U.FL (UMCC) |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, U.FL (UMCC), I-PEX MHF1 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 2.362 in |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC), I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC) |
