VNB35NV0413TR
ActiveSTMicroelectronics

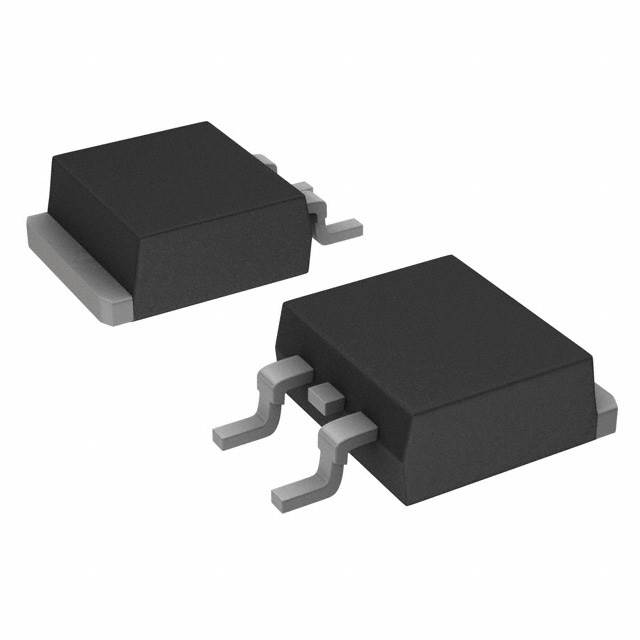

IC PWR DRIVER N-CHAN 1:1 D2PAK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VNB35NV0413TR
ActiveSTMicroelectronics
IC PWR DRIVER N-CHAN 1:1 D2PAK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNB35NV0413TR | VNB35 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 30 A | 25 - 30 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Features | - | Status Flag |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 13 mOhm | 13 - 28 mOhm |
| Supplier Device Package | D2PAK | D2PAK |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load | 36 V | 36 - 55 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VNB35 Series
IC PWR DRIVER N-CHAN 1:1 D2PAK
| Part | Voltage - Supply (Vcc/Vdd) | Package / Case | Rds On (Typ) | Number of Outputs | Output Type | Ratio - Input:Output [custom] | Voltage - Load | Current - Output (Max) [Max] | Supplier Device Package | Fault Protection | Interface | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Switch Type | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNB35NV04 | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB | 13 mOhm | 1 | N-Channel | 1:1 | 36 V | 30 A | D2PAK | Current Limiting (Fixed), Over Temperature, Over Voltage | On/Off | Non-Inverting | 150 °C | -40 °C | Low Side | General Purpose | Surface Mount | ||
STMicroelectronics VNB35NV0413TR | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB | 13 mOhm | 1 | N-Channel | 1:1 | 36 V | 30 A | D2PAK | Current Limiting (Fixed), Over Temperature, Over Voltage | On/Off | Non-Inverting | 150 °C | -40 °C | Low Side | General Purpose | Surface Mount | ||
STMicroelectronics VNB35NV04TR-E | ||||||||||||||||||
STMicroelectronics VNB35NV04TR-E | ||||||||||||||||||
STMicroelectronics VNB35N0713TR | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB | 28 mOhm | 1 | N-Channel | 1:1 | 55 V | 25 A | D2PAK | Current Limiting (Fixed), Over Temperature, Over Voltage | On/Off | Non-Inverting | Low Side | General Purpose | Surface Mount | Status Flag | |||
STMicroelectronics VNB35NV04TR-E | ||||||||||||||||||
STMicroelectronics VNB35NV04TR-E | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB | 13 mOhm | 1 | N-Channel | 1:1 | 36 V | 30 A | D2PAK | Current Limiting (Fixed), Over Temperature, Over Voltage | On/Off | Non-Inverting | 150 °C | -40 °C | Low Side | General Purpose | Surface Mount |
Description
General part information
VNB35 Series
Power Switch/Driver 1:1 N-Channel 30A D2PAK
