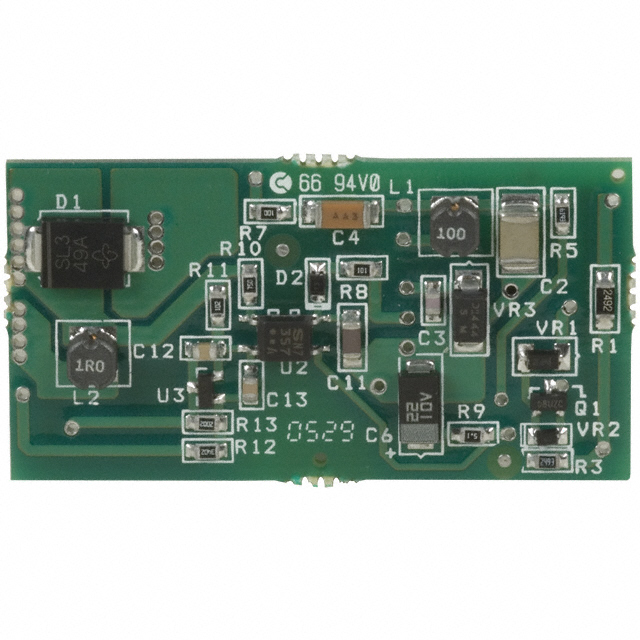

DAK-68A

Active

Power Integrations

KIT DESIGN ACCELERATOR POE CONV

Search across all available documentation for this part.

Active

Power Integrations

KIT DESIGN ACCELERATOR POE CONV

Technical Specifications

Parameters and characteristics for this part

Specification	DAK-68A

Board Type	Fully Populated, Bare (Unpopulated)
Current - Output	2 A
Frequency - Switching	400 kHz
Main Purpose	Special Purpose DC/DC, Power Over Ethernet
Outputs and Type	Non-Isolated
Outputs and Type	1
Power - Output	6.6 W
Regulator Topology	Flyback
Supplied Contents	Board(s)
Utilized IC / Part	DPA423, DPA425, DPA424
Voltage - Input [Max]	57 V
Voltage - Input [Min]	36 V
Voltage - Output	3.3 V

KIT DESIGN ACCELERATOR POE CONV

Part	Supplied Contents	Board Type	Voltage - Output	Frequency - Switching	Regulator Topology	Utilized IC / Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Power - Output	Outputs and Type	Outputs and Type
Power Integrations DAK-68A	Board(s)	Bare (Unpopulated), Fully Populated	3.3 V	400 kHz	Flyback	DPA423, DPA424, DPA425	Power Over Ethernet, Special Purpose DC/DC	36 V	57 V	2 A	6.6 W	Non-Isolated	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	11	$ 29.95

General part information

DPA423, DPA424, DPA425 DPA-Switch® Special Purpose DC/DC, Power Over Ethernet 1, Non-Isolated Outputs Evaluation Board
