R191764000
ActiveRadiall USA, Inc.

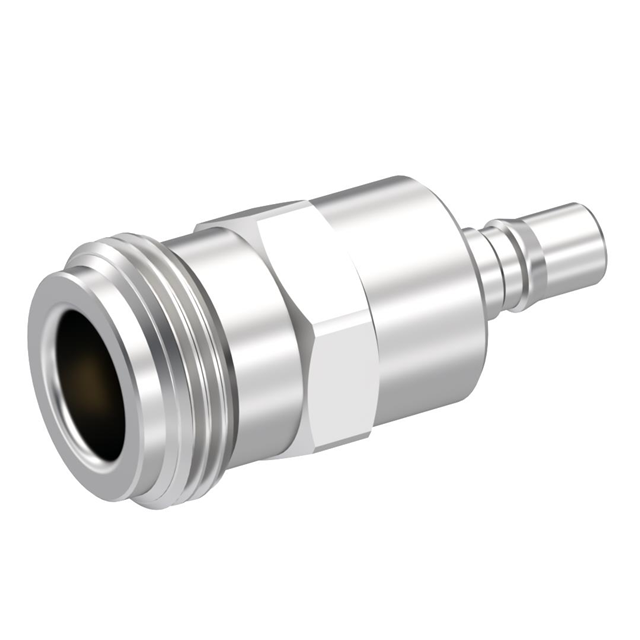

N FEMALE - QMA FEMALE STRAIGHT A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R191764000 |
|---|---|
| Adapter Series | N to QMA |
| Adapter Type | Jack to Jack |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) | QMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
R19176 Series
| Part | Impedance | Conversion Type | Convert From (Adapter End) | Adapter Series | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Body Finish | Center Gender | Dielectric Material | Mounting Type | Style | Frequency - Max [Max] | Center Contact Material | Adapter Type | Fastening Type | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | 50 Ohms | Between Series | Female Socket N Jack | N to QN | Brass | -55 °C | 125 °C | Female Socket QN Jack | White Bronze | Female to Female | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Straight | 6000 MHz | Beryllium Copper | Jack to Jack | Push-Pull Threaded | |
Radiall USA, Inc. | 50 Ohms | Between Series | Female Socket N Jack | N to QMA | Brass | -40 °C | 80 C | Male Pin QMA Plug | White Bronze | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Straight | 6000 MHz | Beryllium Copper | Plug to Jack | Snap-On Threaded | Gold | |
Radiall USA, Inc. | 50 Ohms | Between Series | Female Socket N Jack | N to QMA | Brass | -40 °C | 80 C | Female Socket QMA Jack | White Bronze | Female to Female | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Straight | 6000 MHz | Beryllium Copper | Jack to Jack | Snap-On Threaded | Gold |
Radiall USA, Inc. | 50 Ohms | Between Series | N Plug Male Pin | N to QMA | Brass | -40 °C | 80 C | Female Socket QMA Jack | White Bronze | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Straight | 6000 MHz | Beryllium Copper | Plug to Jack | Snap-On Threaded | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 159.61 | |
Description
General part information
R19176 Series
Adapter Coaxial Connector N Jack, Female Socket To QMA Jack, Female Socket 50 Ohms
