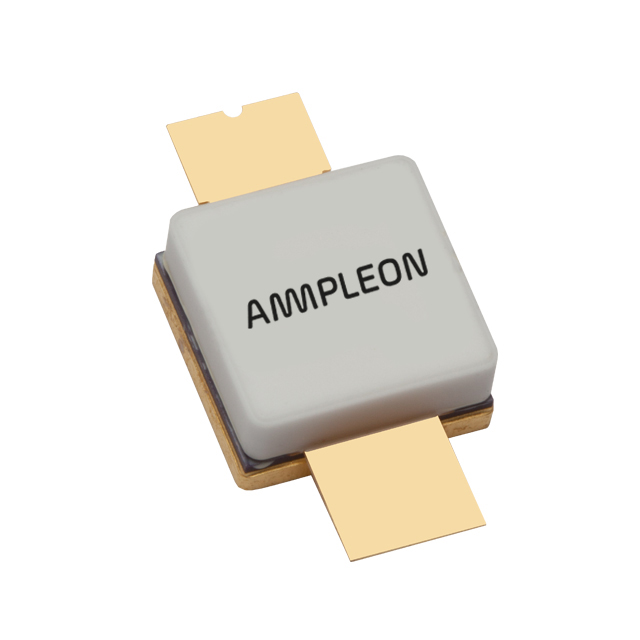

BLS9G3135LS-115U

Active

Ampleon USA Inc.

RF MOSFET LDMOS 50V CDFM2

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 50V CDFM2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 50 V 600 mA 3.1GHz ~ 3.5GHz 11dB 115W CDFM2

Technical documentation and resources

Part	Power - Output	Package / Case	Voltage - Test	Supplier Device Package	Mounting Type	Current - Test	Gain	Voltage - Rated	Frequency [Min]	Frequency [Max]	Current Rating (Amps)
Ampleon USA Inc. BLS9G3135LS-115U	115 W	SOT-1135B	50 V	CDFM2	Chassis Mount	600 mA	11 dB	28 V	3.1 GHz	3.5 GHz
Ampleon USA Inc. BLS9G3135L-400U	400 W	SOT-502A	32 V	SOT502A	Chassis Mount	400 mA	12 dBi	65 V	3.1 GHz	3.5 GHz	4 µA
Ampleon USA Inc. BLS9G2735LS-50U	50 W	SOT-1135B		CDFM2	Chassis Mount		12 dBi	32 V	2.7 GHz	3.5 GHz
Ampleon USA Inc. BLS9G3135L-115U	115 W	SOT-1135A	50 V	CDFM2	Chassis Mount	600 mA	11 dB	28 V	3.1 GHz	3.5 GHz
Ampleon USA Inc. BLS9G2731LS-400U	400 W	SOT-502B	32 V	SOT502B	Chassis Mount	400 mA	13 dBi	65 V	2.7 GHz	3.1 GHz	4 µA
Ampleon USA Inc. BLS9G2729LS-350U	350 W	SOT-502B	28 V	SOT502B	Chassis Mount	400 mA	14 dBi	65 V	2.7 GHz	2.9 GHz	4 µA
Ampleon USA Inc. BLS9G3135LS-400U	400 W	SOT-502B	32 V	SOT502B		400 mA	12 dBi	65 V	3.1 GHz	3.5 GHz	4 µA
