TSC213IYCT

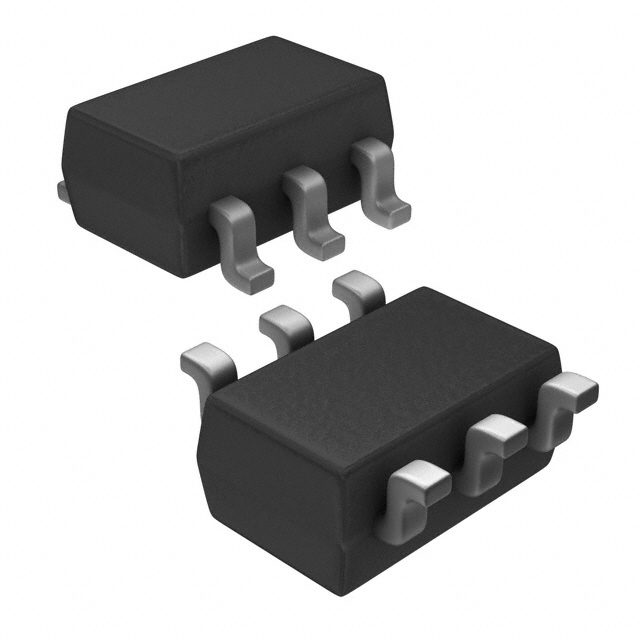

ActiveCURRENT SENSE AMPLIFIER, HIGH SIDE, LOW SIDE, 100 KHZ, SC-70, 6 PINS, -40 °C, 125 °C
Deep-Dive with AI
Search across all available documentation for this part.
TSC213IYCT
ActiveCURRENT SENSE AMPLIFIER, HIGH SIDE, LOW SIDE, 100 KHZ, SC-70, 6 PINS, -40 °C, 125 °C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSC213IYCT | TSC213 Series |
|---|---|---|
| - | - | |
| -3db Bandwidth | - | 100 kHz |
| Amplifier Type | Current Sense | Current Sense |
| Current - Input Bias | 28 µA | 28 µA |
| Current - Supply | 65 µA | 65 µA |
| Gain Bandwidth Product | 100 kHz | 100 kHz |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull | Push-Pull |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Slew Rate | 0.85 V/µs | 0.85 V/µs |
| Supplier Device Package | SC-70-6 | SC-70-6 |
| Voltage - Input Offset | 100 çV | 100 çV |
| Voltage - Supply Span (Max) [Max] | 26 V | 26 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.11 | |
| 10 | $ 1.90 | |||
| 25 | $ 1.79 | |||
| 100 | $ 1.52 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.25 | |||
| 1000 | $ 1.04 | |||
| Digi-Reel® | 1 | $ 2.11 | ||
| 10 | $ 1.90 | |||
| 25 | $ 1.79 | |||
| 100 | $ 1.52 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.25 | |||
| 1000 | $ 1.04 | |||
| Tape & Reel (TR) | 3000 | $ 0.97 | ||
| 6000 | $ 0.93 | |||
TSC213 Series
Low / High side bidirectional, zero-drift, current sense amplifiers
| Part | Package / Case | Current - Supply | Supplier Device Package | Mounting Type | Slew Rate | Voltage - Input Offset | Amplifier Type | Voltage - Supply Span (Max) [Max] | Current - Input Bias | Output Type | Number of Circuits | Voltage - Supply Span (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Gain Bandwidth Product | -3db Bandwidth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSC213IYQT | ||||||||||||||||
STMicroelectronics TSC213ICT | ||||||||||||||||
STMicroelectronics TSC213ICT | ||||||||||||||||
STMicroelectronics TSC213IYCT | ||||||||||||||||
STMicroelectronics TSC213IYCT | 6-TSSOP, SC-88, SOT-363 | 65 µA | SC-70-6 | Surface Mount | 0.85 V/µs | 100 çV | Current Sense | 26 V | 28 µA | Push-Pull | 1 | 2.7 V | -40 °C | 125 °C | 100 kHz | |
STMicroelectronics TSC213ICT | 6-TSSOP, SC-88, SOT-363 | 65 µA | SC-70-6 | Surface Mount | 0.85 V/µs | 100 çV | Current Sense | 26 V | 28 µA | 1 | 2.7 V | -40 °C | 125 °C | 100 kHz | ||
STMicroelectronics TSC213IQT | ||||||||||||||||
STMicroelectronics TSC213IYCT |
Description
General part information
TSC213 Series
The TSC210, TSC211, TSC212, TSC213, TSC214 and TSC215 are a series of zero-drift current sense amplifiers that can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is. They are available in three different versions, each of them having a different gain. The TSC21x are designed with a specific zero-drift architecture, which can achieve high precision.
The TSC21x are current sense amplifiers that may be used in various functions such as precision current measurement, over current protection, current monitoring, feedback loops.
These devices fully operate over the broad supply voltage range of 2.7 to 26 V and over the industrial temperature range -40 to 125 °C.
