T520D227M2R5ATE007

Active

KEMET

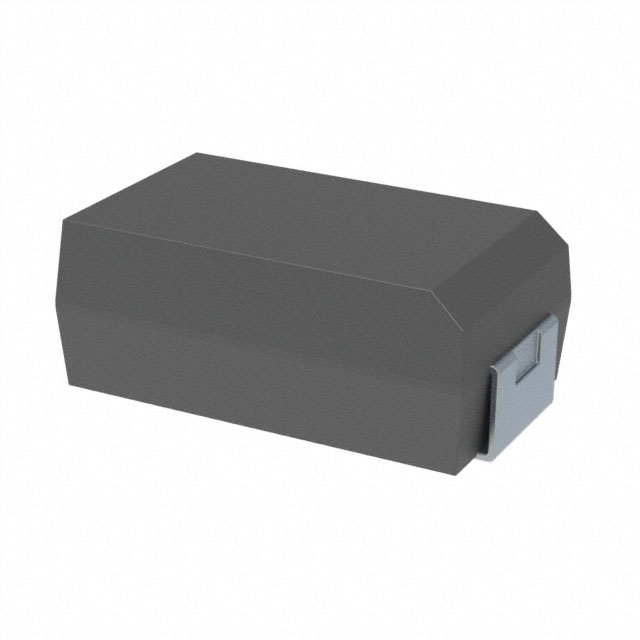

TANTALUM POLYMER CAPACITOR, KO-CAP®, 220 ΜF, ± 20%, D, 2917 [7343 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T52x,T530 Series, KO-CAP®+3

T520D227M2R5ATE007

Active

KEMET

TANTALUM POLYMER CAPACITOR, KO-CAP®, 220 ΜF, ± 20%, D, 2917 [7343 METRIC]

Deep-Dive with AI

DocumentsDatasheet T52x,T530 Series, KO-CAP®+3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T520D227M2R5ATE007

Capacitance	220 µF
ESR (Equivalent Series Resistance)	7 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.122 "
Height - Seated (Max) [Max] [z]	3.1 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	2.5 V

T520D Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Features	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Type	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Capacitance	Lifetime @ Temp.
KEMET T520D687M004ATE012	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	4 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	12 mOhm	105 ░C	-55 °C	20 %	680 µF	2000 Hrs
KEMET T520D227M010ATE018	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	10 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	18 mOhm	105 ░C	-55 °C	20 %	220 µF	2000 Hrs
KEMET T520D157M006ATE007	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	6.3 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	7 mOhm	105 ░C	-55 °C	20 %	150 µF	2000 Hrs
KEMET T520D337M006ATE018	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	6.3 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	18 mOhm	105 ░C	-55 °C	20 %	330 µF	2000 Hrs
KEMET T520D108M2R5ATE006	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	2.5 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	6 mOhm	105 ░C	-55 °C	20 %	1000 µF	2000 Hrs
KEMET T520D337M004ATE006	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	4 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	6 mOhm	105 ░C	-55 °C	20 %	330 µF	2000 Hrs
KEMET T520D687M003ATE015	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	3 VDC	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	15 mOhm	105 ░C	-55 °C	20 %	680 µF	2000 Hrs
KEMET T520D227M2R5ATE007	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	2.5 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	7 mOhm	105 ░C	-55 °C	20 %	220 µF	2000 Hrs
KEMET T520D157M006ATE055	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	6.3 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	55 mOhm	105 ░C	-55 °C	20 %	150 µF	2000 Hrs
KEMET T520D477M004ATE015	0.122 "	3.1 mm	7343 Metric	2917	General Purpose	4 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	D	15 mOhm	105 ░C	-55 °C	20 %	470 µF	2000 Hrs
