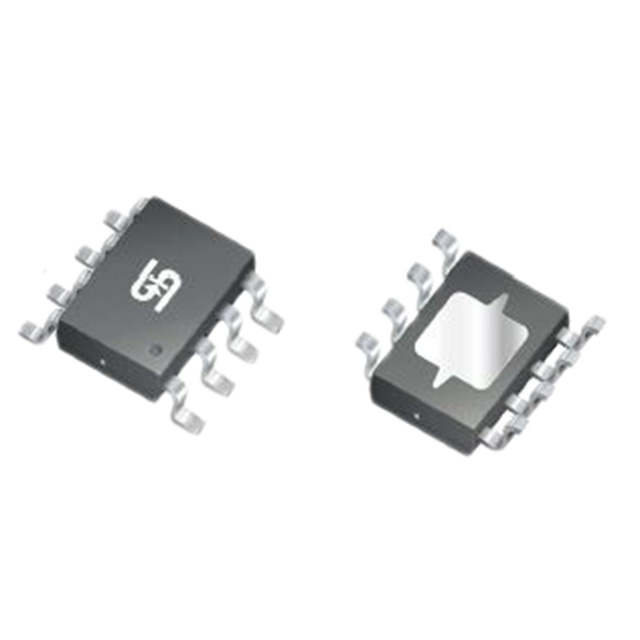

TS78L09CS RLG

Active

Taiwan Semiconductor Corporation

LINEAR VOLT REG, 9V, 100MA, SOP-8 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

LINEAR VOLT REG, 9V, 100MA, SOP-8 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TS78L09CS RLG

Current - Output	100 mA
Current - Quiescent (Iq)	6 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Protection Features	Over Current, Over Temperature
PSRR	57 dB
Supplier Device Package	8-SOP
Voltage - Input (Max) [Max] [custom]	35 V
Voltage - Output (Min/Fixed)	9 V
Voltage Dropout (Max) [Max]	1.7 V

Part	Voltage - Input (Max) [Max] [custom]	Number of Regulators	Package / Case	Output Configuration	PSRR	Output Type	Protection Features	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Current - Output	Mounting Type	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case [y]	Package / Case [x]
Taiwan Semiconductor Corporation TS78L09CX RFG	35 V	1	SC-59 SOT-23-3 TO-236-3	Positive	57 dB	1.81 mOhm	Over Current Over Temperature	6 mA	1.7 V	100 mA	Surface Mount	9 V	85 °C	-40 °C	SOT-23
Taiwan Semiconductor Corporation TS78L09ACY RMG	35 V	1	TO-243AA	Positive	57 dB	1.81 mOhm	Over Current Over Temperature	6 mA	1.7 V	100 mA	Surface Mount	9 V	85 °C	-40 °C
Taiwan Semiconductor Corporation TS78L09CS RLG	35 V	1	8-SOIC	Positive	57 dB	1.81 mOhm	Over Current Over Temperature	6 mA	1.7 V	100 mA	Surface Mount	9 V	85 °C	-40 °C	8-SOP	3.9 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 100mA 8-SOP
