Q-0K01K000R060i

Active

Amphenol Custom Cable

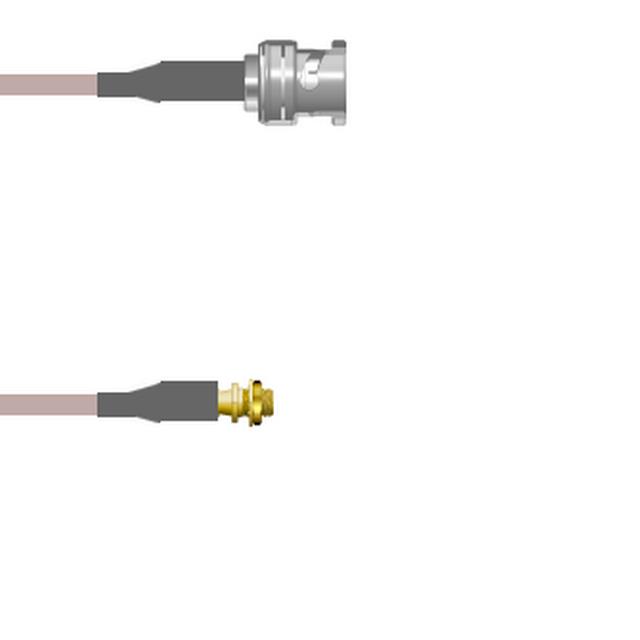

COAX CBL BNC TO MMCX 5'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO MMCX 5'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0K01K000R060i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	BNC to MMCX

Part	Cable Type	Style	Frequency - Max [Max]	1st Connector	Color	2nd Contact Gender	1st Contact Gender	Overall Impedance	2nd Connector	1st Connector Mounting Type	Length	Length	Features	2nd Connector Mounting Feature	2nd Connector Mounting Type	Length
Amphenol Custom Cable Q-0K01K000R.75M	RG-316 DB	BNC to MMCX	4 GHz	BNC Plug	Copper	Female	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	29.53 "	750 mm	Shielded	Bulkhead - Front Side Nut	Panel Mount
Amphenol Custom Cable Q-0K01K000R108i	RG-316 DB	BNC to MMCX	4 GHz	BNC Plug	Copper	Female	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	108 in	2.7 m	Shielded	Bulkhead - Front Side Nut	Panel Mount	9 ft
Amphenol Custom Cable Q-0K01K000R060i	RG-316 DB	BNC to MMCX	4 GHz	BNC Plug	Copper	Female	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	5 '	1.5 m	Shielded	Bulkhead - Front Side Nut	Panel Mount	5 ft
Amphenol Custom Cable Q-0K01K000R036i	RG-316 DB	BNC to MMCX	4 GHz	BNC Plug	Copper	Female	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	36 in	91.44 cm	Shielded	Bulkhead - Front Side Nut	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to MMCX RG-316 DB 60.0" (1.5m) 5.0'
