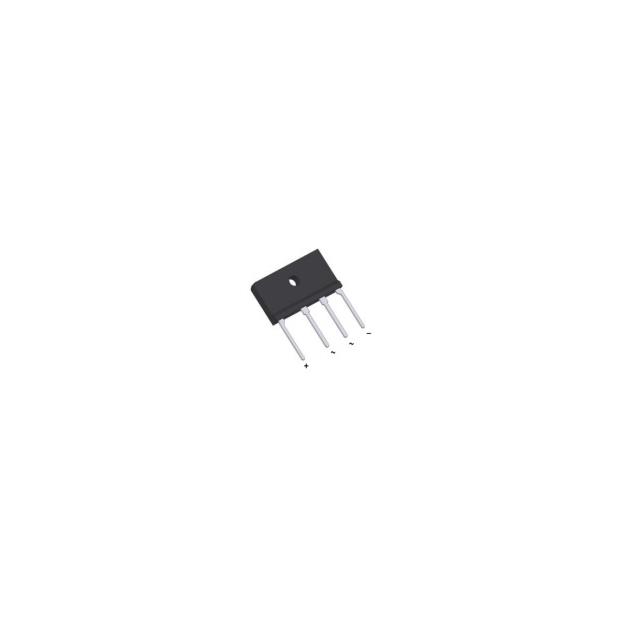

GBJL15J
ActiveSMC Diode Solutions
600V, 15A, GBJL, BRIDGE RECTIFIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBJL15J
ActiveSMC Diode Solutions
600V, 15A, GBJL, BRIDGE RECTIFIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GBJL15J |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SIP, GBJL |
| Supplier Device Package | GBJL |
| Technology | Standard |
| Voltage - Peak Reverse (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.70 | |
| 10 | $ 0.60 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.35 | |||
| 1440 | $ 0.30 | |||
| 2880 | $ 0.26 | |||
| 5760 | $ 0.25 | |||
| 10080 | $ 0.23 | |||
Description
General part information
GBJL15 Series
Bridge Rectifier Single Phase Standard 600 V Through Hole GBJL
