825440-3
ActiveTE Connectivity AMP Connectors

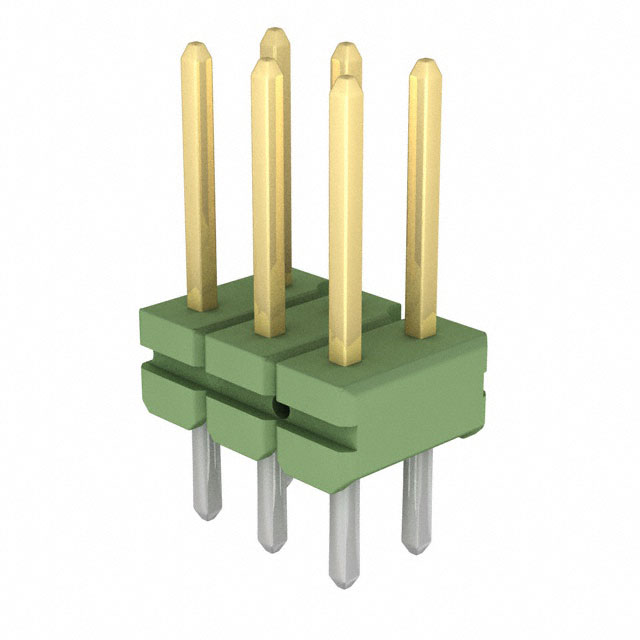

CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
825440-3
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 825440-3 | 825440 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 0.099 µm | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin | 3.9 µin |
| Contact Finish Thickness - Post | 2.5 µm | 2.5 µm |
| Contact Finish Thickness - Post | 98.4 µin | 98.4 µin |
| Contact Length - Mating | 6.7 mm | 6.7 mm |
| Contact Length - Mating | 0.264 in | 0.264 in |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 6 | 4 - 64 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 12.7 mm | 12.7 mm |
| Overall Contact Length | 0.5 " | 0.5 " |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
825440 Series
CONN HEADER VERT 16POS 2.54MM
| Part | Pitch - Mating | Pitch - Mating | Shrouding | Termination | Contact Finish - Mating | Overall Contact Length | Overall Contact Length | Fastening Type | Contact Shape | Style | Number of Rows | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Contact Length - Post | Contact Length - Post [x] | Connector Type | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Insulation Color | Insulation Material | Number of Positions | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 825440-8 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | 16 | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | |
TE Connectivity AMP Connectors 1-825440-6 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | ||
TE Connectivity AMP Connectors 1-825440-7 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 34 | |
TE Connectivity AMP Connectors 825440-6 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 12 | |
TE Connectivity AMP Connectors 825440-2 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 4 | |
TE Connectivity AMP Connectors 1-825440-1 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 22 positions | |
TE Connectivity AMP Connectors 1-825440-0 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 20 | |
TE Connectivity AMP Connectors 3-825440-2 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 64 | |
TE Connectivity AMP Connectors 2-825440-5 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 50 | |
TE Connectivity AMP Connectors 825440-3 | 0.1 in | 2.54 mm | Unshrouded | Solder | Gold | 12.7 mm | 0.5 " | Push-Pull | Square | Board to Board, Cable | 2 | UL94 V-0 | 2.5 µm | 98.4 µin | -65 ░C | 105 ░C | 0.099 µm | 3.9 µin | Brass | 3.2 mm | 0.126 in | Header | 6.7 mm | 0.264 in | Tin | Green | Polybutylene Terephthalate (PBT) | Male Pin | 2.54 mm | 0.1 in | All | Through Hole | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.60 | |||
| 800 | $ 0.58 | |||
Description
General part information
825440 Series
Connector Header Through Hole 6 position 0.100" (2.54mm)
