825440-2

Active

TE Connectivity AMP Connectors

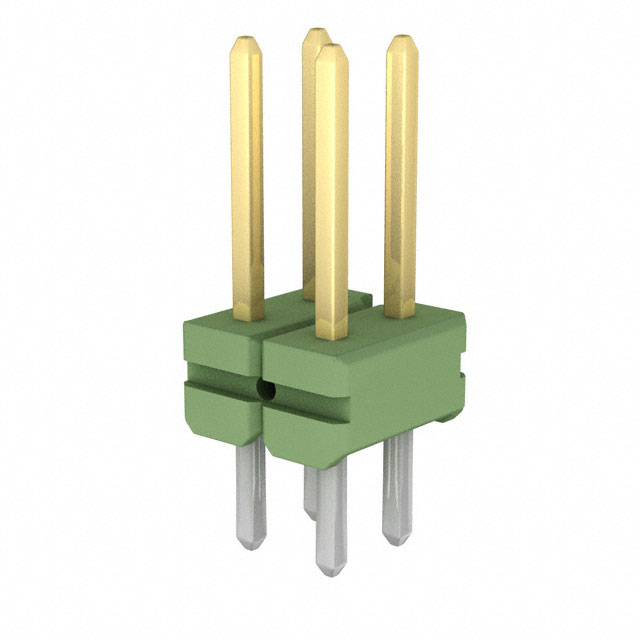

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

825440-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10800	$ 0.42

Description

General part information

825440 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	825440-2	825440 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	2.5 µm	2.5 µm
Contact Finish Thickness - Post	98.4 µin	98.4 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4 - 64
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	12.7 mm	12.7 mm
Overall Contact Length	0.5 "	0.5 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

825440 Series

CONN HEADER VERT 16POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Shrouding	Termination	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Shape	Style	Number of Rows	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Length - Post	Contact Length - Post [x]	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Color	Insulation Material	Number of Positions	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 825440-8	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)	16	Male Pin	2.54 mm	0.1 in	All	Through Hole
TE Connectivity AMP Connectors 1-825440-6	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole
TE Connectivity AMP Connectors 1-825440-7	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	34
TE Connectivity AMP Connectors 825440-6	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	12
TE Connectivity AMP Connectors 825440-2	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	4
TE Connectivity AMP Connectors 1-825440-1	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	22 positions
TE Connectivity AMP Connectors 1-825440-0	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	20
TE Connectivity AMP Connectors 3-825440-2	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	64
TE Connectivity AMP Connectors 2-825440-5	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	50
TE Connectivity AMP Connectors 825440-3	0.1 in	2.54 mm	Unshrouded	Solder	Gold	12.7 mm	0.5 "	Push-Pull	Square	Board to Board, Cable	2	UL94 V-0	2.5 µm	98.4 µin	-65 ░C	105 ░C	0.099 µm	3.9 µin	Brass	3.2 mm	0.126 in	Header	6.7 mm	0.264 in	Tin	Green	Polybutylene Terephthalate (PBT)		Male Pin	2.54 mm	0.1 in	All	Through Hole	6
