Q-1S03P0008060i

Active

Amphenol Custom Cable

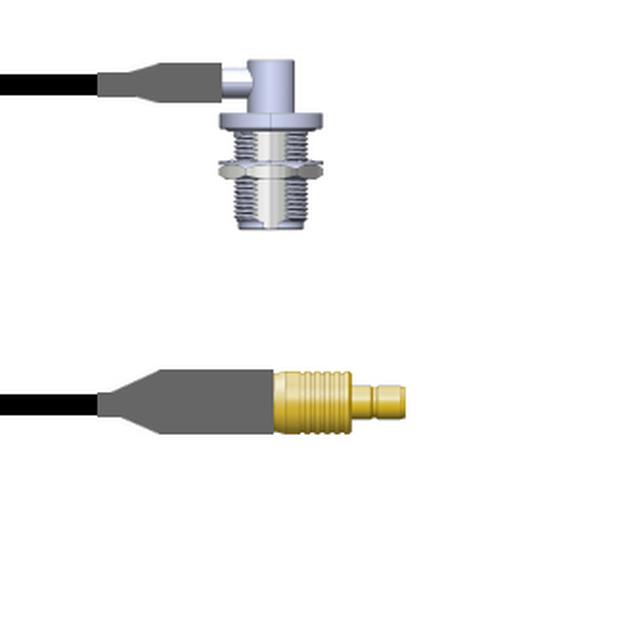

CBL ASSY SMB-NTYPE JACK-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S03P0008060i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S03P0008060i

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1S03P0 Series

Part	Features	2nd Connector Mounting Type	1st Contact Gender	2nd Contact Gender	2nd Connector Mounting Feature	Length	Length	1st Connector	Frequency - Max [Max]	Color	Style	1st Connector Mounting Type	2nd Connector	Cable Type	Overall Impedance	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1S03P0008006i	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	152.4 mm	6 in	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms
Amphenol Custom Cable Q-1S03P0008108i	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	2.7 m	108 in	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms	9 ft
Amphenol Custom Cable Q-1S03P0008001M	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	1 m	39.4 in	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms	3.3 ft
Amphenol Custom Cable Q-1S03P00081.5M	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	1.5 m	59.1 in	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms	4.9 ft
Amphenol Custom Cable Q-1S03P0008009i	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	228.6 mm	9 "	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms
Amphenol Custom Cable Q-1S03P0008003M	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	3 m	118.1 in	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms	9.8 '
Amphenol Custom Cable Q-1S03P0008024i	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	609.6 mm	24 "	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms
Amphenol Custom Cable Q-1S03P0008060i	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	1.5 m	5 '	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms	5 ft
Amphenol Custom Cable Q-1S03P00080.5M	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut	50 cm	19.69 "	SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms
Amphenol Custom Cable Q-1S03P0008018i	Shielded	Panel Mount	Male	Female	Bulkhead - Front Side Nut			SMB Jack	4 GHz	Black	SMB to N-Type	Free Hanging (In-Line)	N-Type Jack Right Angle	RG-58	50 Ohms		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 190.87
		25	$ 187.22
		50	$ 183.57
		100	$ 179.92
		250	$ 176.27

Description

General part information

Q-1S03P0 Series

Cable Assembly Coaxial SMB to N-Type RG-58 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
