14GPTSTRRED250

Active

Remington Industries

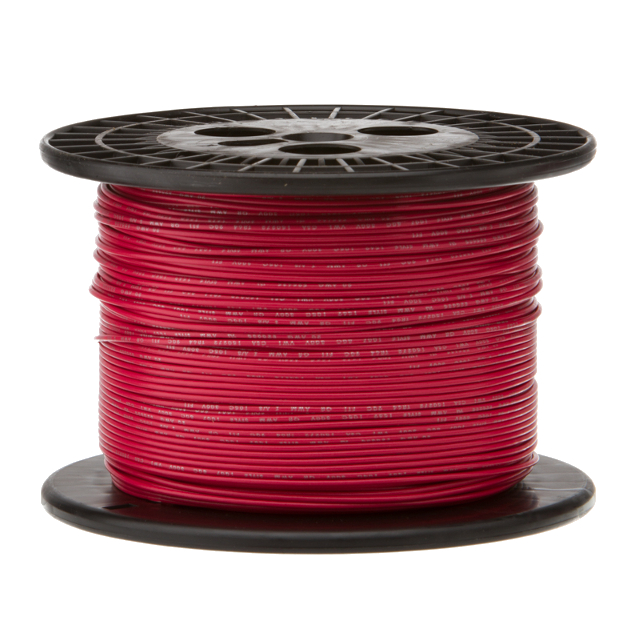

HOOK-UP STRND 14AWG 60V RED 250'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

14GPTSTRRED250

Active

Remington Industries

HOOK-UP STRND 14AWG 60V RED 250'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14GPTSTRRED250

Cable Type	Hook-Up
Conductor Material	Copper, Bare
Features	Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant
Jacket (Insulation) Diameter [diameter]	0.117 in
Jacket (Insulation) Diameter [diameter]	2.97 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Red
Length	3000 "
Length	76.2 m
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Voltage	60 V
Wire Gauge	13.5 AWG

14GPTSTR Series

Part	Features	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Cable Type	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket (Insulation) Material	Length	Length
Remington Industries 14GPTSTRBLA500	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Black	13.5 AWG	0.117 in	2.97 mm	500 '	152.4 m	Poly-Vinyl Chloride (PVC)
Remington Industries 14GPTSTRBLA250	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Black	13.5 AWG	0.117 in	2.97 mm			Poly-Vinyl Chloride (PVC)	3000 "	76.2 m
Remington Industries 14GPTSTRRED500	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Red	13.5 AWG	0.117 in	2.97 mm	500 '	152.4 m	Poly-Vinyl Chloride (PVC)
Remington Industries 14GPTSTRGRE250	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Green	13.5 AWG	0.117 in	2.97 mm			Poly-Vinyl Chloride (PVC)	3000 "	76.2 m
Remington Industries 14GPTSTRBLU500	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Blue	13.5 AWG	0.117 in	2.97 mm	500 '	152.4 m	Poly-Vinyl Chloride (PVC)
Remington Industries 14GPTSTRRED250	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Red	13.5 AWG	0.117 in	2.97 mm			Poly-Vinyl Chloride (PVC)	3000 "	76.2 m
Remington Industries 14GPTSTRRED1000	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Red	13.5 AWG	0.117 in	2.97 mm			Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Remington Industries 14GPTSTRYEL1000	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Yellow	13.5 AWG	0.117 in	2.97 mm			Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Remington Industries 14GPTSTRRED100	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Red	13.5 AWG	0.117 in	2.97 mm	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)
Remington Industries 14GPTSTRYEL250	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	60 V	85 °C	-40 °C	Copper Bare	Hook-Up	Yellow	13.5 AWG	0.117 in	2.97 mm			Poly-Vinyl Chloride (PVC)	3000 "	76.2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 66.74

Description

General part information

14GPTSTR Series

14 AWG Hook-Up Wire 19/27 Red 60V 250.0' (76.2m)

Documents

Technical documentation and resources
