927854-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.250

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

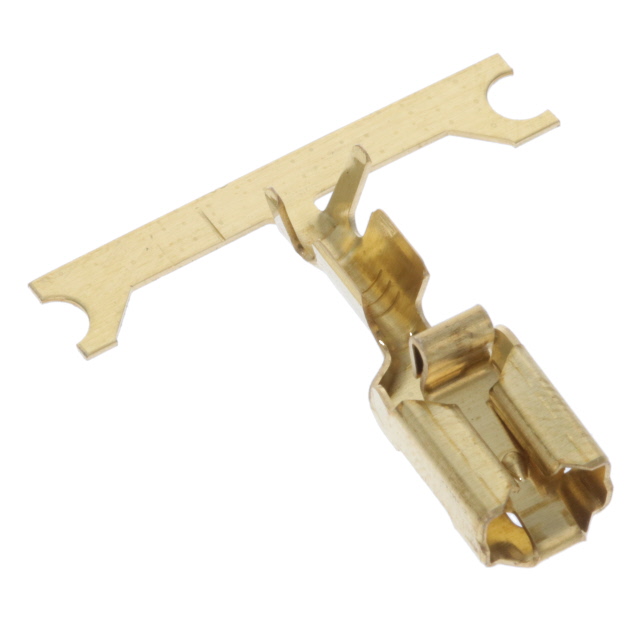

0.250" (6.35mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated

Technical documentation and resources

Part	Termination	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Insulation	Terminal Type	Gender	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Finish
TE Connectivity AMP Connectors 927854-8	Crimp	0.032 in	0.81 mm	6.35 mm	0.25 in	Non-Insulated	Standard	Female	Phosphor Bronze	14 AWG	17 AWG	Free Hanging (In-Line)	0.878 in	22.3 mm	Silver
TE Connectivity AMP Connectors 927854-1	Crimp	0.032 in	0.81 mm	6.35 mm	0.25 in	Non-Insulated	Standard	Female	Brass	14 AWG	17 AWG	Free Hanging (In-Line)	0.878 in	22.3 mm
TE Connectivity AMP Connectors 927854-2	Crimp	0.032 in	0.81 mm	6.35 mm	0.25 in	Non-Insulated	Standard	Female	Phosphor Bronze	14 AWG	17 AWG	Free Hanging (In-Line)	0.878 in	22.3 mm
