H48B-TG-RO-PG36

Active

TE Connectivity AMP Connectors

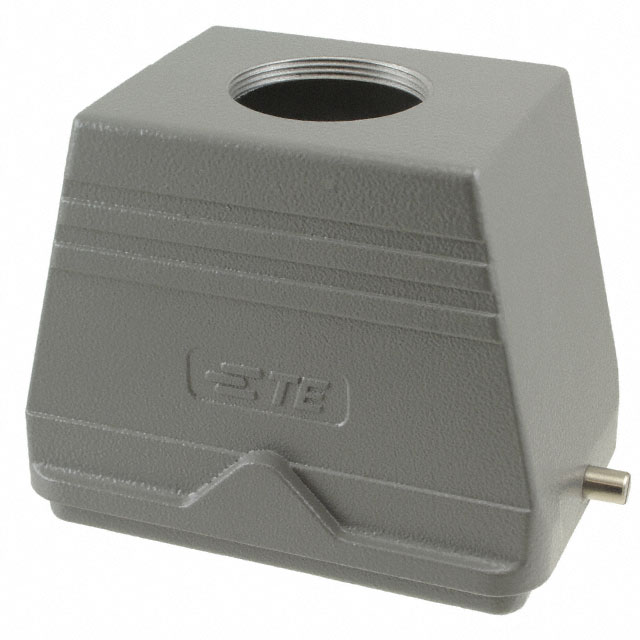

CONN HOOD TOP ENTRY SZ48B PG36

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HOOD TOP ENTRY SZ48B PG36

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	H48B-TG-RO-PG36	H48B Series

Connector Type	Hood	Hood
Housing Color	Gray	Gray
Housing Finish	Powder Coated	Powder Coated
Housing Material	Aluminum Alloy, Die Cast	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	48 B	48 B
Style	Top Entry	Top Entry, Side Entry
Thread Size	PG36	PG36

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN HOOD TOP ENTRY SZ48B PG36

Part	Housing Material	Ingress Protection	Connector Type	Style	Thread Size	Housing Finish	Housing Color	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Size
TE Connectivity AMP Connectors H48B-TG-RO-PG36	Aluminum Alloy, Die Cast	IP65 - Dust Tight, Water Resistant	Hood	Top Entry	PG36	Powder Coated	Gray	Locking Clip (1) on Base Bottom	125 °C	-40 °C	48 B
TE Connectivity AMP Connectors H48B-TS-RO-PG36	Aluminum Alloy, Die Cast	IP65 - Dust Tight, Water Resistant	Hood	Side Entry	PG36	Powder Coated	Gray	Locking Clip (1) on Base Bottom	125 °C	-40 °C	48 B

General part information

Hood Connector Top Entry PG36 48B IP65 - Dust Tight, Water Resistant
