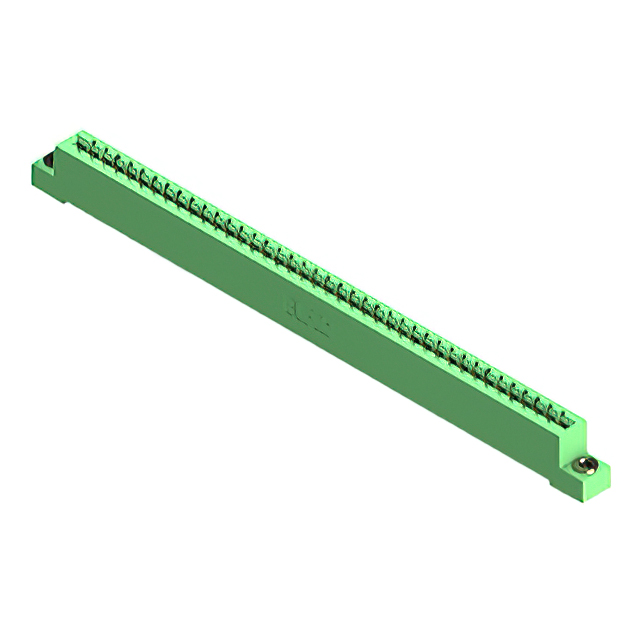

837-039-500-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-039-500-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-039-500-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 39 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
837-039 Series
...
| Part | Pitch [x] | Pitch [x] | Card Type | Gender | Mounting Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Color | Termination Rows | Termination | Contact Material | Number of Positions/Bay/Row [custom] | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole Right Angle | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Solder | Copper Alloy | 39 | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Wire Wrap | Copper Alloy | 39 | 1 | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Solder Eyelet(s) | Copper Alloy | 39 | 1 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Solder | Copper Alloy | 39 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Wire Wrap | Copper Alloy | 39 | 1 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Solder | Copper Alloy | 39 | 1 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole Right Angle | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Solder | Copper Alloy | 39 | 1 | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole Right Angle | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Solder | Copper Alloy | 39 | 1 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole Right Angle | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Solder | Copper Alloy | 39 | 1 | Side Mount Opening Unthreaded | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | ||
EDAC Inc. | 0.156 in | 3.96 mm | Non Specified - Single Edge | Female | Through Hole | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | Green | 1 | Wire Wrap | Copper Alloy | 39 | 1 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 125 °C | -40 °C | Cantilever | Gold | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-039 Series
39 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
