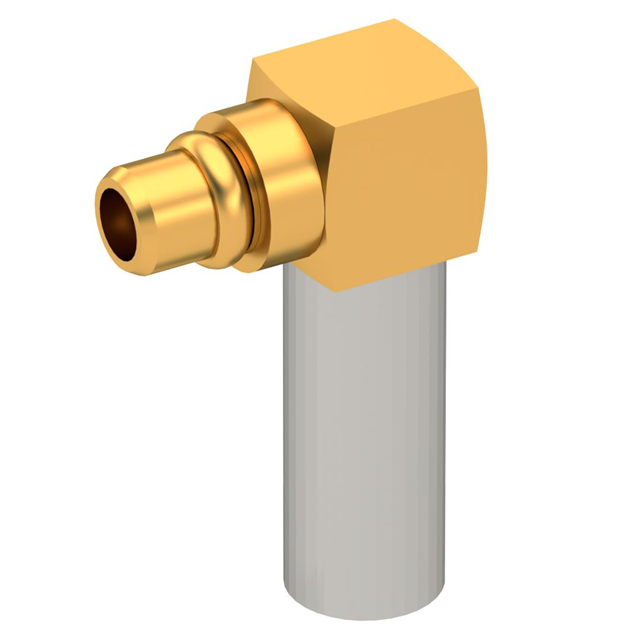

R110A172100

Active

Radiall USA, Inc.

MMCX / RIGHT ANGLE PLUG CRIMP TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMCX / RIGHT ANGLE PLUG CRIMP TY

Technical Specifications

Parameters and characteristics for this part

Specification	R110A172100

Body Finish	Gold
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	3 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Style	Dielectric Material	Contact Termination	Connector Type	Body Material	Frequency - Max [Max]	Cable Group	Body Finish	Housing Color	Shield Termination	Fastening Type	Center Contact Plating	Center Contact Material	Number of Ports	Impedance	Voltage Rating
Radiall USA, Inc. R110A172100	85 °C	-40 °C	Free Hanging (In-Line) Right Angle	MMCX	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	Brass	3 GHz	316 RG-188	Gold	Gold	Crimp	Snap-On	Gold	Brass	1	50 Ohms	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.78

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp

Technical documentation and resources

No documents available
