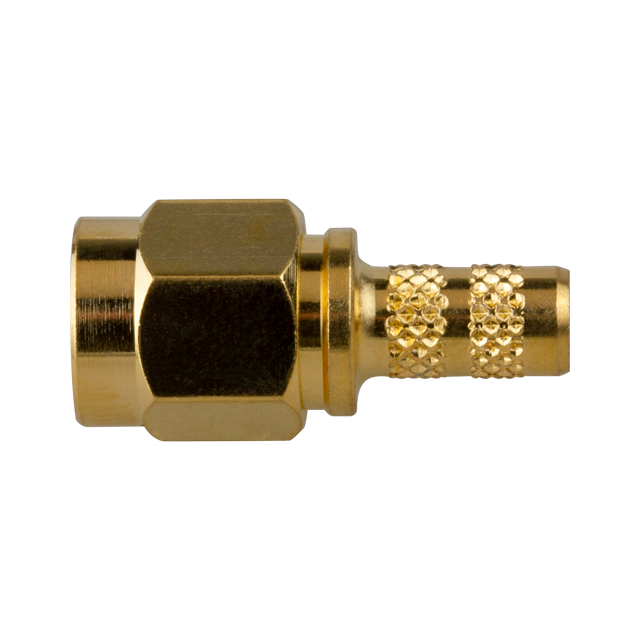

RSA-3000-1C1

Active

RF Industries

SMA MALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

SMA MALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RSA-3000-1C1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Housing Color	Voltage Rating	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Finish	Center Contact Plating	Contact Termination	Center Contact Material	Mounting Type	Number of Ports	Dielectric Material	Frequency - Max [Max]	Connector Style	Body Material	Connector Type
RF Industries RSA-3000-1C1	Gold	500 V	Crimp	-65 ░C	85 °C	50 Ohms	Gold	Gold	Solder	Brass	Free Hanging (In-Line)	1	Polytetrafluoroethylene (PTFE)	12.4 GHz	SMA	Brass	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
