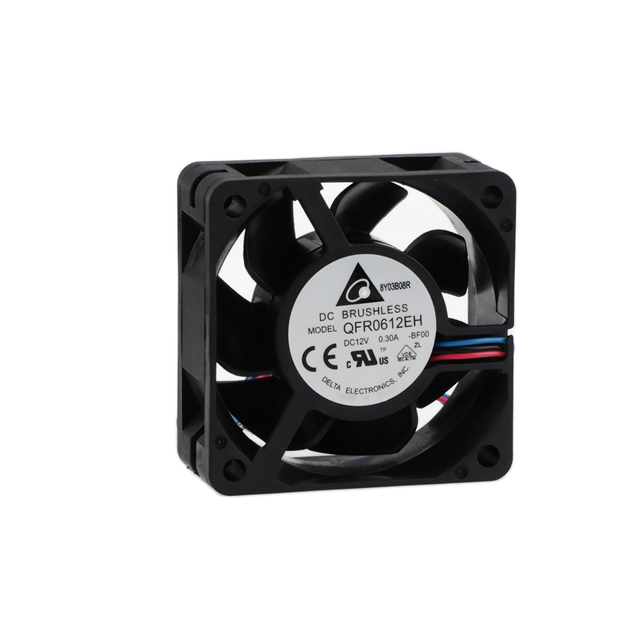

QFR0612EH-BF00

Obsolete

Delta Electronics

FAN AXIAL 60X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

QFR0612EH-BF00

Obsolete

Delta Electronics

FAN AXIAL 60X25.4MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QFR0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 28.9 CFM (0.809m³/min) 3 Wire Leads

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QFR0612EH-BF00	QFR0612 Series

Air Flow	0.809 mł/min	0.809 - 51.2 CFM
Air Flow	28.9 CFM	28.9 - 36.6 CFM
Air Flow	-	1.43 m³/min
Approval Agency	CE, cURus, VDE	CE, cURus, VDE, UL, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.2 A	0.2 - 750 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	50000 - 70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	39 dB(A)	39 - 61.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	2.4 W	2.4 - 13.2 W
RPM	6000 RPM	6000 - 13000 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	88 Pa	88 - 546.5 Pa
Static Pressure	0.353 in H2O	0.353 - 2.194 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	13.2 VDC
Voltage Range [Min]	7 V	7 V
Weight	90.26 g	90.26 - 130.18 g
Weight	0.199 lb	0.199 - 0.287 lb
Width [y]	25.4 mm	25.4 - 38 mm

QFR0612 Series

FAN AXIAL 60X25.4MM 12VDC WIRE

Part	Power (Watts)	Noise	Termination	Voltage Range [Max]	Voltage Range [Min]	Fan Type	RPM	Material - Frame	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Static Pressure	Static Pressure	Lifetime @ Temp.	Width [y]	Air Flow	Air Flow	Weight	Weight	Features	Bearing Type	Material - Blade	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Ingress Protection
Delta Electronics QFR0612DH-BF00	9 W	54.5 dB	3 Wire Leads	13.2 VDC	7 V	Tubeaxial	10600 RPM	Plastic	750 mA	60 mm	60 mm	12 VDC	1.016 in H2O	253.1 Pa	70000 Hrs	25.4 mm	51.2 CFM	1.43 m³/min	90.26 g	0.199 lb	Locked Rotor Protection, Speed Sensor (Tach)	Ball	Plastic	CE, cURus, VDE	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics QFR0612GH-BF00	3.6 W	44.7 dB(A)	3 Wire Leads	13.2 VDC	7 V	Tubeaxial	7600 RPM	Plastic		60 mm	60 mm	12 VDC	0.558 in H2O	139 Pa	70000 Hrs	25.4 mm	1.03 m³/min		90.26 g	0.199 lb	Locked Rotor Protection, Speed Sensor (Tach)	Ball	Plastic	CE, cURus, VDE	70 °C	70 °C	-10 °C	-10 °C	36.6 CFM
Delta Electronics QFR0612UHE-PM00	13.2 W	61.5 dB(A)	2 Wire Leads	13.2 VDC	7 V	Tubeaxial	13000 RPM	Plastic	1.1 A	60 mm	60 mm	12 VDC	2.194 in H2O	546.5 Pa	50000 Hrs	38 mm			130.18 g	0.287 lb		Ball	Plastic	CE, CSA, UL, VDE	70 °C	70 °C	-10 °C	-10 °C		IP55 - Dust Protected, Water Resistant
Delta Electronics QFR0612EH-BF00	2.4 W	39 dB(A)	3 Wire Leads	13.2 VDC	7 V	Tubeaxial	6000 RPM	Plastic	0.2 A	60 mm	60 mm	12 VDC	0.353 in H2O	88 Pa	70000 Hrs	25.4 mm	0.809 mł/min		90.26 g	0.199 lb	Locked Rotor Protection, Speed Sensor (Tach)	Ball	Plastic	CE, cURus, VDE	70 °C	70 °C	-10 °C	-10 °C	28.9 CFM
