8105 0601000

Active

Belden Inc.

MULTI-PAIR 10COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 10COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8105 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.303 in
Jacket (Insulation) Diameter [diameter]	7.7 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Shield Type	Shield Coverage	Wire Gauge	Conductor Material	Shield Material	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Features	Ratings	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket (Insulation) Material	Length [x]	Length [x]
Belden Inc. 8105 0601000	0.889 mm	0.035 in	Computer	Braid Foil	65 % 100 %	24 AWG	Copper Tinned	Aluminum Copper Tinned	1000 ft	304.8 m	-30 ░C	80 C	Chrome	32 AWG	7	Foam Polyethylene (FPE)	Drain Wire	UL Style 2919	Multi-Pair	0.303 in	7.7 mm	10	Poly-Vinyl Chloride (PVC)
Belden Inc. 8105 060100	0.889 mm	0.035 in	Computer	Braid Foil	65 % 100 %	24 AWG	Copper Tinned	Aluminum Copper Tinned			-30 ░C	80 C	Chrome	32 AWG	7	Foam Polyethylene (FPE)	Drain Wire	UL Style 2919	Multi-Pair	0.303 in	7.7 mm	10	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.91

General part information

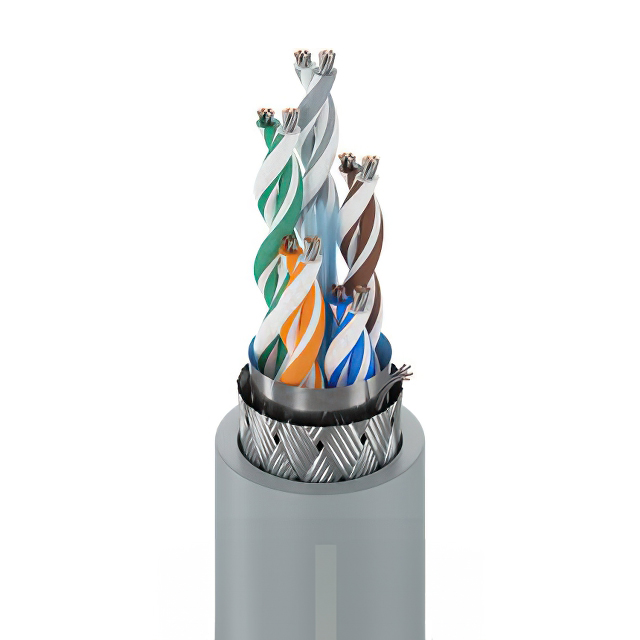

10 (5 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
