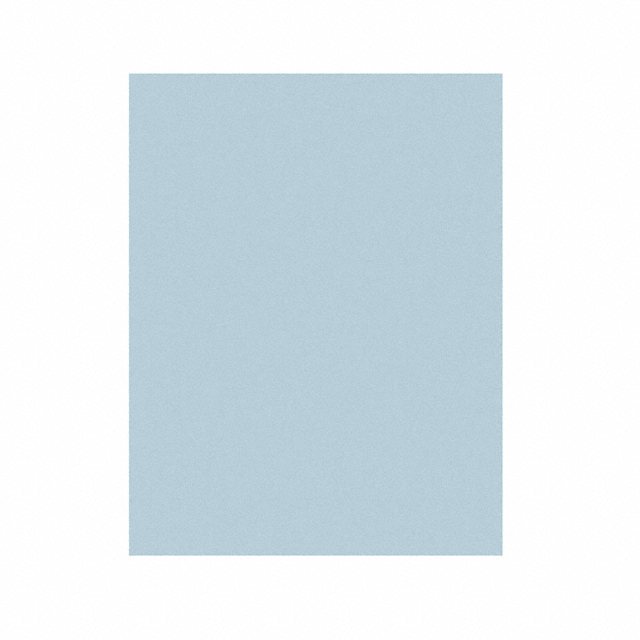

9MIC 3M261X SHEET 8.5X11"

Active

3M (TC)

LAPPING FILM ALUM OX 9U 11"X8.5"

Search across all available documentation for this part.

Active

3M (TC)

LAPPING FILM ALUM OX 9U 11"X8.5"

Technical Specifications

Parameters and characteristics for this part

Specification	9MIC 3M261X SHEET 8.5X11"

Abrasive Material	Aluminum Oxide
Applications	Fiber Optic Connector Polishing
Color	Blue
Length	279.4 mm
Length [x]	11 in
Micron Size	9 µ
Type	Lapping Film
Width	215.9 mm
Width	8.5 in

Part	Color	Diameter [diameter]	Diameter [diameter]	Abrasive Material	Applications	Type	Micron Size	Width	Width	Length	Length [x]	Length	Length	Width [x]	Width [x]
3M (TC) 3MIC 3M261X DISC 8"	Pink	8 in	203.2 mm	Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	3 µ
3M (TC) 30MIC 3M261X LF AO 3MIL 5 IN	Green	5 "	127 mm	Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	30 µ
3M (TC) 12MIC 3M261X SHEET 8.5X11"	Yellow			Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	12 µ	215.9 mm	8.5 in	279.4 mm	11 in
3M (TC) 3MIC 3M261X SHEET 8.5X11"	Pink			Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	3 µ	215.9 mm	8.5 in	279.4 mm	11 in
3M (TC) 9MIC 3M261X SHEET 8.5X11"	Blue			Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	9 µ	215.9 mm	8.5 in	279.4 mm	11 in
3M (TC) 9MIC 3M261X DISC 8"	Blue	8 in	203.2 mm	Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	9 µ
3M (TC) 3MIC 3M261X ROLL 4"X150'X3"	Pink			Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	3 µ			45.7 m		50 yds	150 ft	4 "	101.6 mm
3M (TC) 9MIC 3M261X ROLL 4"X150'X3"	Blue			Aluminum Oxide	Fiber Optic Connector Polishing	Lapping Film	9 µ			45.7 m		50 yds	150 ft	4 "	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lapping Film Aluminum Oxide 9µ 8.50" (215.90mm) X 11.00" (279.40mm) Dia
