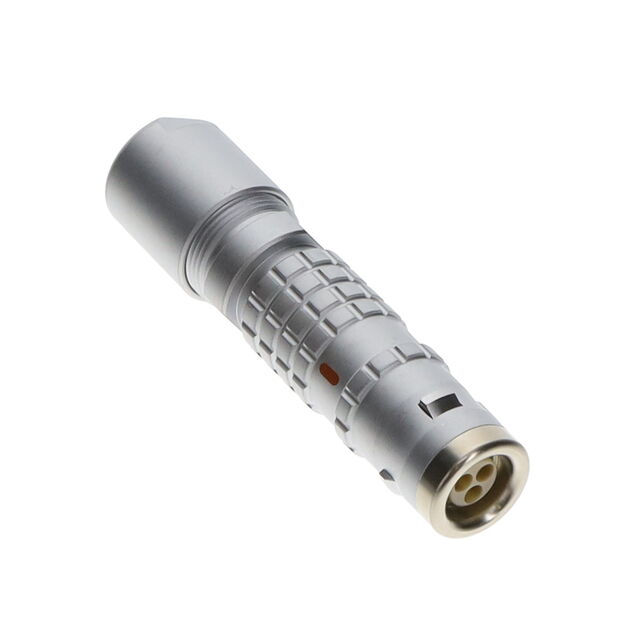

FGL.1K.303.CYMK80

Active

LEMO

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGL.1K.303.CYMK80

Active

LEMO

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGL.1K.303.CYMK80	FGL.1K Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Black Chrome
Cable Opening	-	4 - 5.5 mm
Cable Opening	-	0.142 - 0.236 in
Cable Opening	-	3.6 - 6 mm
Cable Opening	-	4.1 - 4.6 mm
Cable Opening	-	4.5 - 5 mm
Cable Opening	-	0.161 - 0.181 in
Cable Opening	-	0.177 - 0.197 in
Cable Opening [Max] [custom]	8 mm	7 - 8 mm
Cable Opening [Max] [custom]	0.315 in	0.276 - 0.315 in
Cable Opening [Min] [custom]	0.299 in	0.26 - 0.299 in
Cable Opening [Min] [custom]	7.6 mm	6.6 - 7.6 mm
Color	Silver	Silver, Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	12 A	2 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	2 - 14
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	L	L
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	302 - 314
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGL.1K Series

CONN PLUG FMALE 10P SOLDER CUP

Part	Shell Material	Contact Material	Insert Material	Shell Finish	Number of Positions	Primary Material	Shielding	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ingress Protection	Contact Finish - Mating	Current Rating (Amps)	Backshell Material, Plating	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Features	Shell Size - Insert	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Termination
LEMO FGL.1K.310.CLLC55	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome	10	Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	2.5 A	Brass, Chrome	Female Sockets, Plug	5.5 mm	0.201 in, 0.217 in	5.1 mm	UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	310
LEMO FGL.1K.303.CLLC60	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome		Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	12 A	Brass, Chrome	Female Sockets, Plug		0.22 in, 0.236 in	5.6 mm, 6 mm	UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	303
LEMO FGL.1K.302.CLLC50Z	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome	2	Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	15 A	Brass, Chrome	Female Sockets, Plug				UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	302	4.6 mm	5 mm	0.181 in	0.197 in
LEMO FGL.1K.308.CLLC40Z	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome	8	Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	5 A	Brass, Chrome	Female Sockets, Plug	4 mm	0.142 in, 0.157 in	3.6 mm	UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	308
LEMO FGL.1K.303.CYMK70Z	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome		Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	12 A	Brass, Chrome	Female Sockets, Plug				UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	303					7 mm	0.26 in	0.276 in	6.6 mm	Crimp
LEMO FGL.1K.308.CYMC45Z	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome	8	Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	5 A	Brass, Chrome	Female Sockets, Plug				UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	308	4.1 mm	4.5 mm	0.161 in	0.177 in					Crimp
LEMO FGL.1K.308.CLLC45Z	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome	8	Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	5 A	Brass, Chrome	Female Sockets, Plug				UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	308	4.1 mm	4.5 mm	0.161 in	0.177 in
LEMO FGL.1K.303.CLLC45Z	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome		Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	12 A	Brass, Chrome	Female Sockets, Plug				UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	303	4.1 mm	4.5 mm	0.161 in	0.177 in
LEMO FGL.1K.304.CYMC60Z	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome	4	Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	10 A	Brass, Chrome	Female Sockets, Plug		0.22 in, 0.236 in	5.6 mm, 6 mm	UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	304									Crimp
LEMO FGL.1K.303.CYMK80	Brass	Bronze	Polyetheretherketone (PEEK)	Chrome		Metal	Shielded	L	-55 °C	200 °C	Free Hanging (In-Line)	IP66/IP68	Gold	12 A	Brass, Chrome	Female Sockets, Plug				UL94 V-0	Push-Pull	59 Áin	1.5 Ám	Silver	Backshell	303					8 mm	0.299 in	0.315 in	7.6 mm	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.00
		10	$ 61.48
		25	$ 59.12
		50	$ 57.14
		100	$ 53.99

Description

General part information

FGL.1K Series

3 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources
