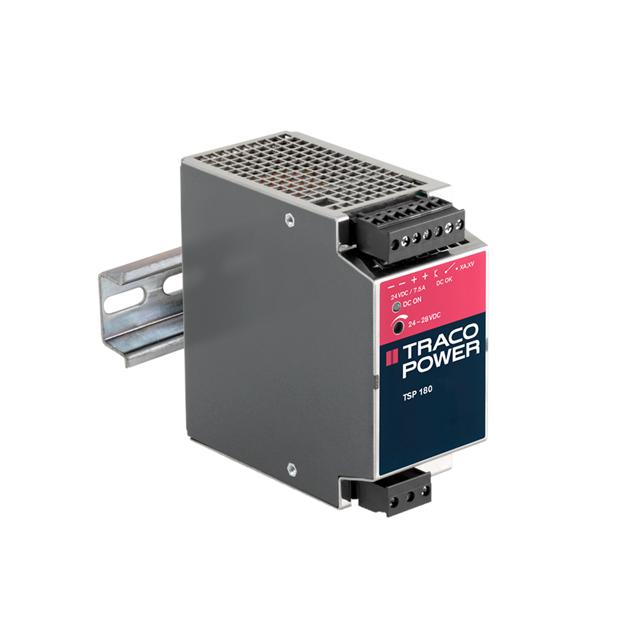

Specification	TSP 180-148 EX

AC Voltage - Input (Max) (Range 1)	132 VAC
AC Voltage - Input (Max) (Range 2)	264 VAC
AC Voltage - Input (Min) (Range 1)	85 VAC
AC Voltage - Input (Min) (Range 2)	187 VAC
Applications	Industrial, Hazardous Locations, ITE (Commercial)
Approval Agency	cURus, CE, CB, SIQ
Current - Output (Max)	4 A
Efficiency	87 %
Features	Adjustable Output, Remote On/Off, IP20, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	192 W
Size / Dimension Height	4.33 in
Size / Dimension Length	4.33 in
Size / Dimension Width	2.13 in
Voltage - Output 1	48 V

TSP 180 Series

Part	Approval Agency	Efficiency	Current - Output (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Features	Input Type	Number of Outputs	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Applications	AC Voltage - Input (Min) (Range 1)	AC Voltage - Input (Min) (Range 2)	AC Voltage - Input (Max) (Range 1)	AC Voltage - Input (Max) (Range 2)	Voltage - Output 1
Traco Power TSP 180-148 EX	CB CE cURus SIQ	87 %	4 A	70 °C	-25 °C	192 W	Adjustable Output IP20 Remote On/Off Universal Input	AC	1	4.33 in	2.13 in	4.33 in	Hazardous Locations Industrial ITE (Commercial)	85 VAC	187 VAC	132 VAC	264 VAC	48 V
